Accurate pressure measurement up to 232 psi. Conforms to EN 837-1 standards. Red/green scale for easy pressure range indication. Suitable for industrial applications.
Product Modelma-40-232-r1/8-psi-e-rg
Material Number526787
Product ID9518
Stock on Request
Last updated: 8/29/2026
Key Features
1

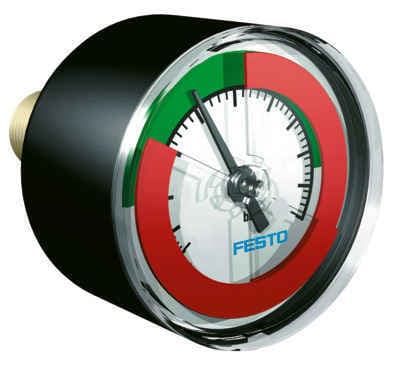

Accurate MeasurementThe Festo MA-40-232-R1/8-PSI-E-RG pressure gauge provides precise measurements up to 232 psi, ensuring reliable data for your industrial applications.
2
Conforms to StandardsThis pressure gauge meets the stringent standards of EN 837-1, ensuring compliance with industry regulations and enhancing the reliability of your measurements.
3
Red/Green Scale IndicationThe red/green scale on the gauge allows for easy identification of the required pressure range, making it simpler to use and interpret the readings.
4
Durable ConstructionBuilt with high-quality materials such as ABS for the housing and PMMA for the screen, this gauge is designed to withstand the rigors of industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Display range
0psi 232psi
Symbol
00991463
Conforms to standard
EN 837-1
Pressure gauge nominal size
40
Explosion prevention and protection
Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Structural design
Bourdon tube pressure gauge
5
Versatile ConnectivityAvailable with various pneumatic connections including G1/8 and R1/8, the Festo MA-40-232-R1/8-PSI-E-RG pressure gauge can be easily integrated into a wide range of systems.
Type of mounting
Line installation
Operating medium
Inert gas Neutral liquids
Information on operating and pilot media
No acetylene No oxygen
Operating pressure
0psi 232psi
Intermittent load factor
0.66
Measurement accuracy class
2.5
Degree of protection
IP43
Temperature of medium
-20°C 60°C
Ambient temperature
-20°C 60°C
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Note on materials
RoHS-compliant
Connection position
Centered on rear side
Pneumatic connection
R1/8
Materials in contact with the media
Brass
Material of screwed plug
Brass
Housing material
ABS
Inspection window material
PMMA
Housing colour
Black
Product weight
60g
Scale
Single scale psi (external)
Manufacturer ID
526787
