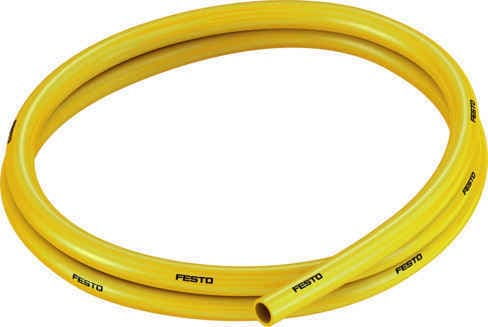

High-performance plastic tubing for pneumatic applications. 10 mm O.D., 54 mm bending radius, 7 mm I.D., RoHS-compliant, and fire-resistant.
Product Modelpun-v0-10x1,5-ge
Material Number525460
Product ID9361
Stock on Request
Last updated: 8/29/2026
Key Features
1
High-Performance DesignThe Festo PUN-V0-10X1,5-GE plastic tubing is engineered to meet the demands of high-cycle applications, ensuring reliable performance in demanding environments.
2
Versatile Operating MediumCompatible with both compressed air (ISO 8573-1:2010) and water (liquid, ice-free), this tubing offers flexibility in various industrial settings.
3
Fire-Resistant MaterialThe tubing meets UL94 V-0 (3mm) and UL94 V-2 (0.75mm) fire test standards, ensuring safety in potentially hazardous conditions.
4
Wide Temperature RangeOperating within a broad temperature range of -35°C to 60°C (unpressurized use up to 90°C), this tubing can handle diverse environmental conditions.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Outside diameter
10mm
Bending radius relevant for flow rate
54mm
Inside diameter
7mm
Min. bending radius
20mm
Tubing characteristics
Suitable for energy chains
Operating pressure for entire temperature range
-13.775psi 101.5psi
Durable ConstructionMade from RoHS-compliant TPE-U(PU) material, this tubing is free from copper and PTFE, ensuring durability and resistance to degradation over time.
6
Easy InstallationDesigned for push-in connectors with an outside diameter of 10 mm, the Festo PUN-V0-10X1,5-GE plastic tubing simplifies installation processes, reducing setup time and effort.
7
Certified Safety StandardsApproved by the German Technical Control Board (TÜV) with certificate issuing authority B 013277 0506 00, this tubing adheres to stringent safety standards, providing assurance in critical applications.
8
High Cycle CompatibilityCompatible with cable carriers, the tubing can withstand over 5 million cycles according to FN 942021, making it ideal for high-cycle rate applications.
9
Lightweight yet RobustWeighing 0.051 kg/m, the Festo PUN-V0-10X1,5-GE plastic tubing offers a lightweight yet robust design, making it easy to handle and maneuver in various industrial settings.
10
Color-Coded for SafetyAvailable in yellow color, which deviates from the standard color due to flame protection, this tubing is color-coded for easy identification and safety in fire-prone environments.
Temperature-dependent operating pressure
-13.775psi 145psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Certification
German Technical Control Board (TüV)
Certificate issuing authority
B 013277 0506 00
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Material fire test
UL94 V-0 (3mm) UL94 V-2 (0.75mm)
LABS (PWIS) conformity
VDMA24364-B2-L
Ambient temperature
-35°C 60°C
Note on ambient temperature
unpressurised use up to 90°C
Product weight by length
0.051kg/m
Pneumatic connection
For plug connection outside diameter 10 mm
Color
Yellow
Information on color
Deviates from the standard color due to flame protection
