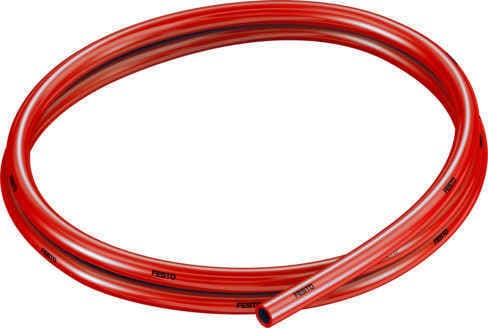

pun-v0-8x1,25-rt

Name: pun-v0-8x1,25-rt
Brand: FESTO
SKU: pun-v0-8x1,25-rt

Festo PUN-V0-8X1,25-RT plastic tubing offers high flow rates with a 37 mm bending radius and 8 mm outside diameter. Resistant to welding spatter, perfect for demanding pneumatic applications.

Product Modelpun-v0-8x1,25-rt

Material Number525451

Product ID9354

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Resistant to Welding SpatterThe PUN-V0-8X1,25-RT is designed to withstand the harsh conditions near welding areas, ensuring durability and reliability in demanding environments.
2
Optimal Flow RatesWith a bending radius of 37 mm, this tubing ensures minimal pressure drop, maintaining high flow rates and efficient pneumatic system performance.
3
Enhanced DurabilityThe increased tubing wall thickness provides added strength and resistance to wear, extending the lifespan of the tubing in various industrial applications.
4
Easy InstallationThe PUN-V0-8X1,25-RT is designed for seamless integration into pneumatic systems, making it a convenient choice for both new installations and upgrades.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Outside diameter

8mm

Bending radius relevant for flow rate

37mm

Inside diameter

5.7mm

Min. bending radius

18mm

Tubing characteristics

Suitable for energy chains

Operating pressure for entire temperature range

-13.775psi 101.5psi

Versatile UsageSuitable for a wide range of pneumatic applications, including automation, manufacturing, and robotics, the PUN-V0-8X1,25-RT offers versatility and reliability.

Temperature-dependent operating pressure

-13.775psi 145psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Certification

German Technical Control Board (TüV)

Certificate issuing authority

B 013277 0506 00

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Material fire test

UL94 V-0 (3mm) UL94 V-2 (0.75mm)

LABS (PWIS) conformity

VDMA24364-B2-L

Ambient temperature

-35°C 60°C

Note on ambient temperature

unpressurised use up to 90°C

Product weight by length

0.031kg/m

Pneumatic connection

For plug connection outside diameter 8 mm For barbed fitting, inside diameter 6 mm, with union nut For barbed fitting, inside diameter 6 mm

Color

Red

Information on color

Deviates from the standard color due to flame protection

Shore hardness

D 54 +/-3

Note on materials

RoHS-compliant

Material of pneumatic tubing

TPE-U(PU)

Manufacturer ID

525451
