pun-v0-6x1-rt

Name: pun-v0-6x1-rt
Brand: FESTO
SKU: pun-v0-6x1-rt

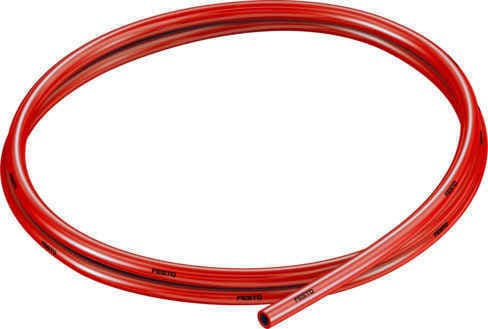

The Festo PUN-V0-6X1-RT plastic tubing is a versatile and reliable option for pneumatic systems. It features a 6 mm outside diameter, 4 mm inside diameter, and a flow-relevant bending radius of 26.5 mm, making it suitable for energy chains and various pneumatic applications.

Product Modelpun-v0-6x1-rt

Material Number525450

Product ID9353

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Versatile DesignThe Festo PUN-V0-6X1-RT plastic tubing is designed to meet the diverse needs of pneumatic systems, offering a reliable solution for various applications.
2
Flexible Bending RadiusWith a flow-relevant bending radius of 26.5 mm, this tubing ensures optimal performance and flexibility in complex system designs.
3
Energy Chain CompatibilitySpecifically engineered for use in energy chains, this tubing provides a seamless integration with Festo's energy chain systems.
4
Robust MaterialConstructed from high-quality TPE-U (PU) material, the PUN-V0-6X1-RT tubing offers excellent durability and resistance to environmental factors.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Outside diameter

6mm

Bending radius relevant for flow rate

26.5mm

Inside diameter

4mm

Min. bending radius

12mm

Tubing characteristics

Suitable for energy chains

Operating pressure for entire temperature range

-13.775psi 101.5psi

Compliance and CertificationsMeets stringent industry standards, including RoHS compliance and certification from the German Technical Control Board (TÜV), ensuring safety and reliability in your pneumatic systems.

Temperature-dependent operating pressure

-13.775psi 145psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Certification

German Technical Control Board (TüV)

Certificate issuing authority

B 013277 0506 00

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Material fire test

UL94 V-0 (3mm) UL94 V-2 (0.75mm)

LABS (PWIS) conformity

VDMA24364-B2-L

Ambient temperature

-35°C 60°C

Note on ambient temperature

unpressurised use up to 90°C

Product weight by length

0.02kg/m

Pneumatic connection

For plug connection outside diameter 6 mm For barbed fitting, inside diameter 4 mm, with union nut For barbed fitting, inside diameter 4 mm

Color

Red

Information on color

Deviates from the standard color due to flame protection

Shore hardness

D 54 +/-3

Note on materials

RoHS-compliant

Material of pneumatic tubing

TPE-U(PU)

Manufacturer ID

525450
