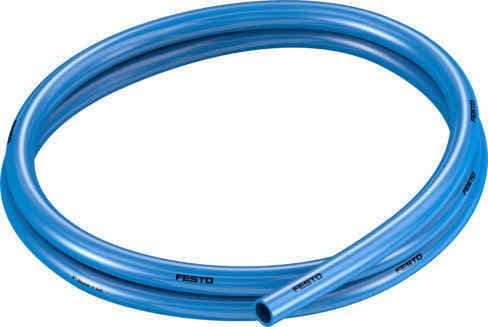

Festo PUN-V0-10X1,5-BL: 10mm OD, 7mm ID, 54mm flow-relevant bending radius, suitable for energy chains, and meets FDA standards for sanitary conditions.
Product Modelpun-v0-10x1,5-bl
Material Number525444
Product ID9349
Stock on Request
Last updated: 8/29/2026
Key Features
1
Reliable PerformanceThe PUN-V0-10X1,5-BL plastic tubing is engineered to provide consistent performance in various automation applications, ensuring smooth operation and minimal downtime.
2
Clean Design PneumaticsDesigned with clean design pneumatic automation in mind, this tubing meets FDA standards for sanitary conditions, making it perfect for applications in the food and beverage industry.
3
Flow-Relevant Bending RadiusWith a flow-relevant bending radius of 54mm, the tubing ensures optimal fluid flow, reducing pressure drops and improving overall system efficiency.
4
Versatile ApplicationsSuitable for use in energy chains and other pneumatic systems, the PUN-V0-10X1,5-BL tubing is versatile and can be easily integrated into a wide range of automation setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Outside diameter
10mm
Bending radius relevant for flow rate
54mm
Inside diameter
7mm
Min. bending radius
20mm
Tubing characteristics
Suitable for energy chains
Operating pressure for entire temperature range
-13.775psi 101.5psi
5
Durable ConstructionConstructed with high-quality materials, the tubing offers a minimum bending radius of 20mm, ensuring durability and resistance to wear and tear in demanding environments.
Temperature-dependent operating pressure
-13.775psi 145psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Certification
German Technical Control Board (TüV)
Certificate issuing authority
B 013277 0506 00
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Material fire test
UL94 V-0 (3mm) UL94 V-2 (0.75mm)
LABS (PWIS) conformity
VDMA24364-B2-L
Ambient temperature
-35°C 60°C
Note on ambient temperature
unpressurised use up to 90°C
Product weight by length
0.051kg/m
Pneumatic connection
For plug connection outside diameter 10 mm
Color
Blue
Information on color
Deviates from the standard color due to flame protection
Shore hardness
D 54 +/-3
Note on materials
RoHS-compliant
Material of pneumatic tubing
TPE-U(PU)
Manufacturer ID
525444
