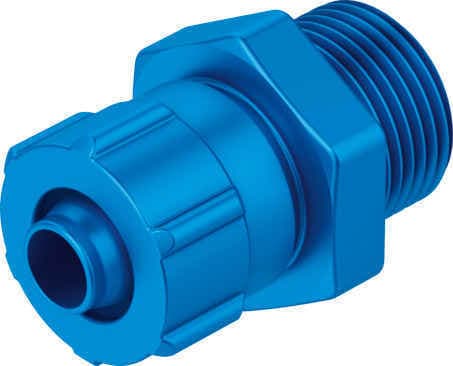

ck-3/8-pk-13

Name: ck-3/8-pk-13
Brand: FESTO
SKU: ck-3/8-pk-13

Product Modelck-3/8-pk-13

Material Number4097

Product ID8992

Stock on Request

Last updated: 8/29/2026

Quantity

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Nominal width

11.7mm

Type of seal on screwed plug

Sealing ring

Mounting position

Any

Design

Straight design

Pack size

Operating pressure for entire temperature range

-13.775psi 145psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-10°C 60°C

Nominal tightening torque

12.5Nm

Tolerance for nominal tightening torque

± 20%

Pneumatic connection 1

External thread G3/8

Pneumatic connection 2

for barbed fitting, inside diameter 13 mm, with nut

Material of union nut

Wrought aluminum alloy, anodized

Material of screwed plug

Anodized wrought aluminum alloy

Note on materials

RoHS-compliant

Sealing ring material

Reinforced PA TPE-U(PU)

Manufacturer ID

4097
