FESTO
Pneumatic cylinders

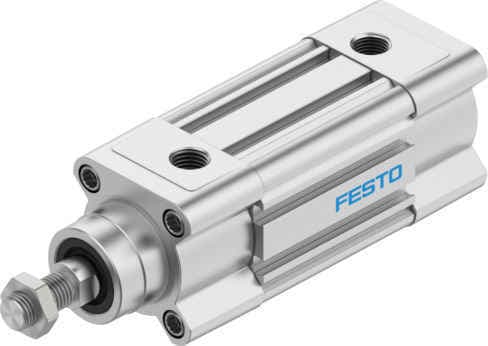

dsbc-40-40-d3-ppsa-n3
Product Model
dsbc-40-40-d3-ppsa-n3
Material Number
3660762
Product ID
8959
Stock on Request
Last updated: 8/29/2026
Quantity
−
+
Add to RFQ
Request Quote Now
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
40mm
Piston diameter
40 mm
Piston rod thread
M12x1.25
Cushioning
Self-adjusting pneumatic end-position cushioning
Mounting position
Any
Conforms to standard
ISO 15552
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00992970
Variants
Piston rod at one end
Operating pressure
0.6bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
0.7J
Cushioning length
19mm
Theoretical force at 6 bar, retracting
633N
Theoretical force at 6 bar, advancing
754N
Moving mass at 0 mm stroke
205g
Additional moving mass per 10 mm stroke
16g
Basic weight with 0 mm stroke
768g
Additional weight per 10 mm stroke
49g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G1/4
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Rod wiper material
TPE-E
Material of bearing
Metal polymer compound
Flange screws material
Steel, galvanized
Manufacturer ID
3660762
