dsbc-40-20-d3-ppsa-n3

Name: dsbc-40-20-d3-ppsa-n3
Brand: FESTO
SKU: dsbc-40-20-d3-ppsa-n3

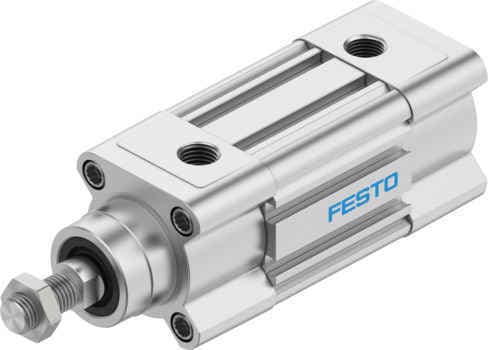

The Festo DSBC-40-20-D3-PPSA-N3 is a double-acting ISO cylinder with 40mm piston diameter and 20mm stroke, offering self-adjusting pneumatic end-position cushioning for smooth operation. Ideal for precision applications, it ensures reliability and efficiency.

Product Modeldsbc-40-20-d3-ppsa-n3

Material Number3660759

Product ID8956

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Precision and ReliabilityThe Festo DSBC-40-20-D3-PPSA-N3 is designed to provide precise and reliable performance in various industrial applications. Its self-adjusting pneumatic end-position cushioning ensures smooth operation, reducing wear and tear on the cylinder.
2
Compliance with ISO StandardsThis cylinder conforms to ISO 15552 standards, ensuring it meets the highest industry standards for quality and performance. Its compliance with ISO 8573-1:2010 for compressed air quality further enhances its reliability.
3
Versatile Mounting OptionsThe DSBC-40-20-D3-PPSA-N3 offers optional mounting positions, allowing for flexible installation in different setups. Whether you need to mount via female thread or with accessories, this cylinder provides the flexibility you need.
4
Robust ConstructionBuilt with high-quality materials, including die-cast aluminum, wrought aluminum alloy, and high-alloy steel, this cylinder is robust and durable. Its components are designed to withstand moderate corrosion stress and ensure long-lasting performance.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

20mm

Piston diameter

40 mm

Piston rod thread

M12x1.25

Cushioning

Self-adjusting pneumatic end-position cushioning

Mounting position

Any

Conforms to standard

ISO 15552

Efficient OperationWith a theoretical force of 633N at 0.6 mPa (6 bar, 87 psi) on the return stroke and 754N on the advance stroke, this cylinder delivers efficient operation. Its lubricated operation option further enhances performance and reduces maintenance needs.

Wide Operating Pressure RangeThe DSBC-40-20-D3-PPSA-N3 operates within a wide pressure range of 0.06MPa to 12MPa, making it suitable for various applications. Its ability to handle different pressures ensures it can be used in a variety of industrial settings.

Environmental ComplianceThe Festo DSBC-40-20-D3-PPSA-N3 is RoHS compliant, ensuring it meets environmental regulations. This cylinder does not contain any SVHC (Substance of Very High Concern) materials, making it a safe choice for environmentally conscious industries.

Technical SupportFesto offers free lifetime technical support for this product, providing customers with expert assistance whenever needed. This support ensures that any issues or questions are addressed promptly, ensuring continuous operation and efficiency.

Accessories and MountingsThe DSBC-40-20-D3-PPSA-N3 is compatible with a range of accessories and mountings, including proximity sensors, piston rod attachments, and cylinder mountings. This compatibility makes it easy to integrate into existing systems or set up new applications.

Customer SupportFor any questions or assistance, customers can call an engineer at 1-802-880-3123. Festo’s customer support team is available Monday through Thursday from 8 AM to 5:30 PM and Friday from 8 AM to 5 PM ET, ensuring timely assistance.

Structural design

Piston Piston rod Profile barrel

Position sensing

For proximity sensor

Symbol

00992970

Variants

Piston rod at one end

Operating pressure

0.6bar 12bar

Mode of operation

Double-acting

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.7J

Cushioning length

19mm

Theoretical force at 6 bar, retracting

633N

Theoretical force at 6 bar, advancing

754N

Moving mass at 0 mm stroke

205g

Additional moving mass per 10 mm stroke

16g

Basic weight with 0 mm stroke

768g

Additional weight per 10 mm stroke

49g

Type of mounting

Optionally: With internal thread With accessories

Pneumatic connection

G1/4

Note on materials

RoHS-compliant

Cover material

Die-cast aluminum, coated

Piston seal material

TPE-U(PU)

Material of piston

Wrought aluminum alloy

Piston rod material

High-alloy steel

Piston rod wiper material

TPE-U(PU)

Buffer seal material

TPE-U(PU)

Cushion piston material

POM

Material of cylinder barrel

Wrought aluminum alloy, smooth-anodized

Nut material

Steel, galvanized

Rod wiper material

TPE-E

Material of bearing

Metal polymer compound

Flange screws material

Steel, galvanized

Manufacturer ID

3660759
