dsbc-50-30-d3-ppsa-n3

Name: dsbc-50-30-d3-ppsa-n3
Brand: FESTO
SKU: dsbc-50-30-d3-ppsa-n3

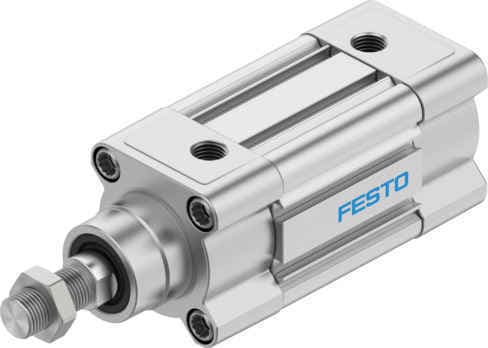

Product Description: The Festo DSBC-50-30-D3-PPSA-N3 is a reliable, ISO 15552-compliant double-acting pneumatic cylinder with a 50mm piston diameter and 30mm stroke. It includes self-adjusting pneumatic end-position cushioning, ensuring smooth operation and extended lifespan.

Product Modeldsbc-50-30-d3-ppsa-n3

Material Number3659493

Product ID8926

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High-Performance OperationThe Festo DSBC-50-30-D3-PPSA-N3 operates efficiently with a double-acting mode, providing balanced force in both the advancing and retracting strokes.
2
ISO ComplianceConforms to the ISO 15552 standard, ensuring compatibility and reliability in a wide range of industrial applications.
3
Self-Adjusting CushioningEquipped with self-adjusting pneumatic end-position cushioning, which enhances the cylinder's performance by reducing wear and tear on moving parts.
4
Versatile Mounting OptionsDesigned for flexible mounting, allowing for easy integration into various systems and configurations.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

30mm

Piston diameter

50 mm

Piston rod thread

M16x1.5

Cushioning

Self-adjusting pneumatic end-position cushioning

Mounting position

Any

Conforms to standard

ISO 15552

Robust MaterialsConstructed from high-quality materials such as wrought aluminum alloy for the cylinder barrel, high-alloy steel for the piston rod, and TPE-U(PU) for the piston seal, ensuring durability and corrosion resistance.

Position DetectionFeatures proximity switch position detection for precise control and monitoring of the cylinder's movement.

Wide Operating Pressure RangeCompatible with operating pressures from 0.04 MPa to 1.2 MPa (0.4 bar to 12 bar), making it suitable for a variety of applications.

Corrosion ResistanceOffers moderate corrosion resistance (CRC 2) and meets VDMA24364-B1/B2-L LABS (PWIS) conformity standards, ensuring reliability in harsh environments.

Compact DesignWith a compact profile barrel design, it fits seamlessly into tight spaces, making it ideal for applications where space is limited.

Easy MaintenanceLubricated operation is possible, which can be required for optimal performance, and the design facilitates easy maintenance and repair.

Structural design

Piston Piston rod Profile barrel

Position sensing

For proximity sensor

Symbol

00992970

Variants

Piston rod at one end

Operating pressure

0.4bar 12bar

Mode of operation

Double-acting

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

Cushioning length

22mm

Theoretical force at 6 bar, retracting

990N

Theoretical force at 6 bar, advancing

1178N

Moving mass at 0 mm stroke

365g

Additional moving mass per 10 mm stroke

25g

Basic weight with 0 mm stroke

1216g

Additional weight per 10 mm stroke

78g

Type of mounting

Optionally: With internal thread With accessories

Pneumatic connection

G1/4

Note on materials

RoHS-compliant

Cover material

Die-cast aluminum, coated

Piston seal material

TPE-U(PU)

Material of piston

Wrought aluminum alloy

Piston rod material

High-alloy steel

Piston rod wiper material

TPE-U(PU)

Buffer seal material

TPE-U(PU)

Cushion piston material

POM

Material of cylinder barrel

Wrought aluminum alloy, smooth-anodized

Nut material

Steel, galvanized

Rod wiper material

TPE-E

Material of bearing

Metal polymer compound

Flange screws material

Steel, galvanized

Manufacturer ID

3659493
