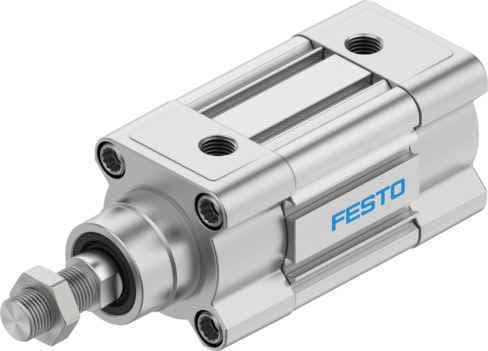

Festo DSBC-50-20-D3-PPSA-N3: 50mm piston diameter, 20mm stroke, self-adjusting end-position cushioning, and ISO 15552 compliance for high precision and durability.
Product Modeldsbc-50-20-d3-ppsa-n3
Material Number3659491
Product ID8924
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Precision and DurabilityThe Festo DSBC-50-20-D3-PPSA-N3 is designed with a 50mm piston diameter and a 20mm stroke, ensuring precise movement and reliable performance in various applications.
2
Self-Adjusting End-Position CushioningEquipped with self-adjusting pneumatic end-position cushioning, this cylinder provides smooth and controlled motion, reducing wear and tear on the components.
3
ISO 15552 ComplianceConforming to the ISO 15552 standard, this cylinder ensures compatibility and reliability in a wide range of industrial settings, making it a trusted choice for many manufacturers.
4
Versatile Mounting OptionsThe DSBC-50-20-D3-PPSA-N3 offers flexible mounting options, allowing for easy integration into various systems and applications. It can be mounted via female thread or with accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
20mm
Piston diameter
50 mm
Piston rod thread
M16x1.5
Cushioning
Self-adjusting pneumatic end-position cushioning
Mounting position
Any
Conforms to standard
ISO 15552
5
Robust Materials and ConstructionBuilt with high-quality materials such as die-cast aluminum for the cover, wrought aluminum alloy for the piston, and high-alloy steel for the piston rod, this cylinder is designed to withstand moderate corrosion stress and operate efficiently in a wide temperature range (-20°C to 80°C).
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00992970
Variants
Piston rod at one end
Operating pressure
0.4bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
1J
Cushioning length
22mm
Theoretical force at 6 bar, retracting
990N
Theoretical force at 6 bar, advancing
1178N
Moving mass at 0 mm stroke
365g
Additional moving mass per 10 mm stroke
25g
Basic weight with 0 mm stroke
1216g
Additional weight per 10 mm stroke
78g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G1/4
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Rod wiper material
TPE-E
Material of bearing
Metal polymer compound
Flange screws material
Steel, galvanized
Manufacturer ID
3659491
