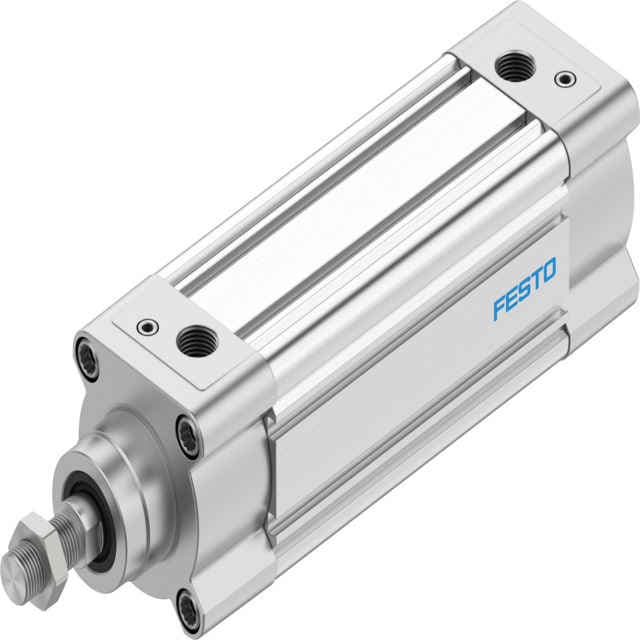

Festo DSBC-63-125-D3-PPVA-N3: 125 mm stroke, 63 mm piston diameter, adjustable pneumatic cushioning, and M16x1.5 piston rod thread. Ideal for precise automation tasks.
Product Modeldsbc-63-125-d3-ppva-n3
Material Number3657868
Product ID8885
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Precision and ReliabilityThe Festo DSBC-63-125-D3-PPVA-N3 pneumatic cylinder is designed to provide high precision and reliability, making it suitable for a wide range of automation tasks. Its robust construction ensures consistent performance under various operating conditions.
2
Adjustable Pneumatic CushioningThis cylinder features adjustable pneumatic cushioning at both ends, allowing for customized damping to suit specific application requirements. This ensures smooth operation and reduces wear and tear on the system.
3
Versatile Mounting OptionsThe DSBC-63-125-D3-PPVA-N3 offers flexible mounting options, making it easy to integrate into various systems. It can be mounted in any position, providing maximum flexibility in system design.
4
Compliance with International StandardsThe cylinder conforms to the ISO 15552 standard, ensuring compatibility with international specifications. This makes it easier to integrate into global automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
125mm
Piston diameter
63 mm
Piston rod thread
M16x1.5
Cushioning
Pneumatic cushioning, adjustable at both ends
Mounting position
Any
Conforms to standard
ISO 15552
5
Corrosion Resistance and DurabilityConstructed from high-quality materials, including wrought aluminum alloy for the piston and high-alloy steel for the piston rod, this cylinder offers excellent corrosion resistance and durability. The die-cast aluminum cover and TPE-U(PU) seals further enhance its resistance to environmental stressors.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00991235
Variants
Piston rod at one end
Operating pressure
0.4bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
1.3J
Cushioning length
22mm
Theoretical force at 6 bar, retracting
1682N
Theoretical force at 6 bar, advancing
1870N
Moving mass at 0 mm stroke
430g
Additional moving mass per 10 mm stroke
25g
Basic weight with 0 mm stroke
1774g
Additional weight per 10 mm stroke
92g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G3/8
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Rod wiper material
TPE-E
Material of bearing
Metal polymer compound
Flange screws material
Steel, galvanized
Manufacturer ID
3657868
