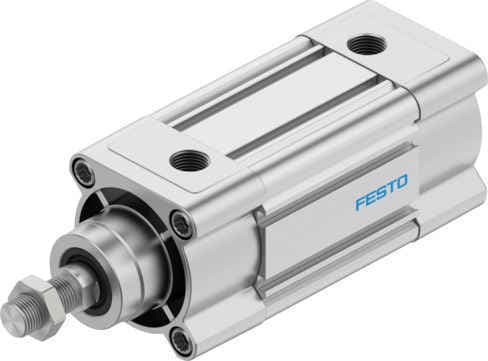

High-precision ISO cylinder with 50mm stroke, 63mm piston diameter, and self-adjusting pneumatic cushioning. Suitable for diverse industrial applications.
Product Modeldsbc-63-50-d3-ppsa-n3
Material Number3657815
Product ID8864
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Precision and ReliabilityThe Festo DSBC-63-50-D3-PPSA-N3 ISO cylinder is designed to provide precise and reliable performance, ensuring consistent results in various industrial applications.
2
Self-Adjusting Pneumatic CushioningEquipped with self-adjusting pneumatic end-position cushioning, this cylinder ensures smooth and controlled movements, reducing wear and tear on the system.
3
Versatile Mounting OptionsThe cylinder offers optional mounting positions, allowing for flexibility in installation and integration into different machinery setups.
4
Compliance with ISO 15552 StandardsConforming to the ISO 15552 standard, this cylinder meets the highest industry standards for quality and performance, ensuring compatibility with a wide range of systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
50mm
Piston diameter
63 mm
Piston rod thread
M16x1.5
Cushioning
Self-adjusting pneumatic end-position cushioning
Mounting position
Any
Conforms to standard
ISO 15552
5
Durable ConstructionBuilt with durable materials and designed for long-lasting operation, the Festo DSBC-63-50-D3-PPSA-N3 ISO cylinder is ideal for applications requiring continuous use and minimal maintenance.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00992970
Variants
Piston rod at one end
Operating pressure
0.4bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
1.3J
Cushioning length
22mm
Theoretical force at 6 bar, retracting
1682N
Theoretical force at 6 bar, advancing
1870N
Moving mass at 0 mm stroke
430g
Additional moving mass per 10 mm stroke
25g
Basic weight with 0 mm stroke
1774g
Additional weight per 10 mm stroke
92g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G3/8
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Rod wiper material
TPE-E
Material of bearing
Metal polymer compound
Flange screws material
Steel, galvanized
Manufacturer ID
3657815
