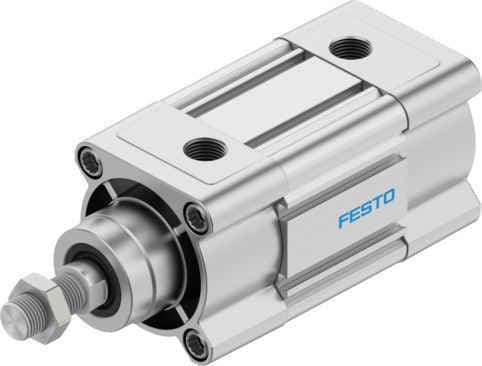

Festo DSBC-63-25-D3-PPSA-N3: High-precision ISO cylinder with self-adjusting pneumatic end-position cushioning, sensor slots on three sides, and versatile mounting options.
Product Modeldsbc-63-25-d3-ppsa-n3
Material Number3657812
Product ID8861
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Precision and AccuracyThe Festo DSBC-63-25-D3-PPSA-N3 ISO cylinder is designed to provide precise and accurate pneumatic actuation, making it suitable for applications requiring high reliability and consistency.
2
Self-Adjusting CushioningEquipped with self-adjusting pneumatic end-position cushioning, this cylinder ensures smooth and controlled movements, reducing wear and tear on the system.
3
Sensor Slots on Three SidesThe D3 feature allows for sensor slots on three sides, enabling the piston position to be sensed from multiple angles. This enhances position control and force management in complex applications.
4
Versatile Mounting OptionsThe cylinder offers various mounting options, including direct mounting on the drive and lateral valve assembly. This flexibility makes it particularly suitable for decentralized use in larger systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
25mm
Piston diameter
63 mm
Piston rod thread
M16x1.5
Cushioning
Self-adjusting pneumatic end-position cushioning
Mounting position
Any
Conforms to standard
ISO 15552
5
High Corrosion ProtectionThe Festo DSBC-63-25-D3-PPSA-N3 cylinder features high corrosion protection, ensuring that the external cylinder surfaces comply with corrosion resistance class 3. This extends the lifespan of the cylinder in harsh environments.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00992970
Variants
Piston rod at one end
Operating pressure
0.4bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
1.3J
Cushioning length
22mm
Theoretical force at 6 bar, retracting
1682N
Theoretical force at 6 bar, advancing
1870N
Moving mass at 0 mm stroke
430g
Additional moving mass per 10 mm stroke
25g
Basic weight with 0 mm stroke
1774g
Additional weight per 10 mm stroke
92g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G3/8
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Rod wiper material
TPE-E
Material of bearing
Metal polymer compound
Flange screws material
Steel, galvanized
Manufacturer ID
3657812
