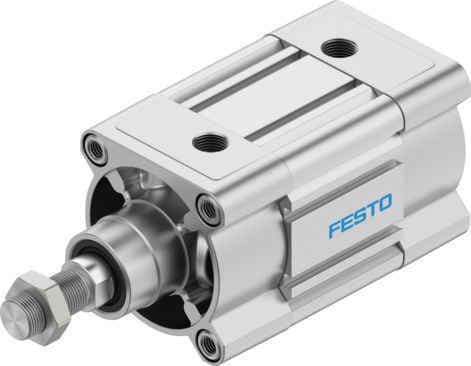

High Precision and FlexibilityThe Festo DSBC-80-30-D3-PPSA-N3 offers precise control and flexibility, making it suitable for a wide range of applications, from manufacturing to automation.
2
Self-Adjusting Pneumatic CushioningEquipped with self-adjusting pneumatic end-position cushioning, this cylinder ensures smooth and reliable operation, reducing wear and tear on the system.
3
Compliance with ISO 15552Conforms to the ISO 15552 standard, ensuring compatibility with various industrial systems and meeting the highest quality standards.
4
Robust Design and MaterialsConstructed with high-quality materials, including die-cast aluminum, wrought aluminum alloy, and high-alloy steel, the DSBC-80-30-D3-PPSA-N3 is built to last and withstand harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
30mm
Piston diameter
80 mm
Piston rod thread
M20x1.5
Cushioning
Self-adjusting pneumatic end-position cushioning
Mounting position
Any
Conforms to standard
ISO 15552
5
Versatile Mounting OptionsOffers flexible mounting options via female thread or with accessories, allowing for easy integration into different system configurations.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00992970
Variants
Piston rod at one end
Operating pressure
0.4bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
1.8J
Cushioning length
31mm
Theoretical force at 6 bar, retracting
2721N
Theoretical force at 6 bar, advancing
3016N
Moving mass at 0 mm stroke
810g
Additional moving mass per 10 mm stroke
39g
Basic weight with 0 mm stroke
2720g
Additional weight per 10 mm stroke
143g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G3/8
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Rod wiper material
TPE-E
Material of bearing
Metal polymer compound
Flange screws material
Steel, galvanized
Manufacturer ID
3656856
