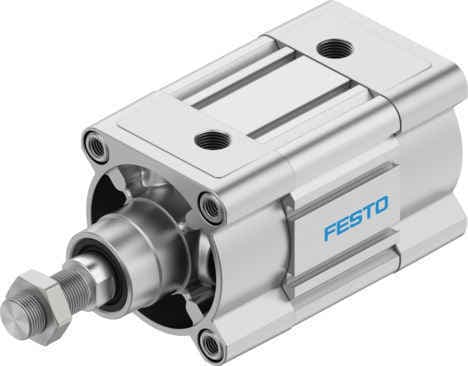

Festo DSBC-80-25-D3-PPSA-N3: Double-acting pneumatic cylinder with 80mm piston diameter, adjustable pneumatic cushioning, and sensor slots for precise position sensing.
Product Modeldsbc-80-25-d3-ppsa-n3
Material Number3656855
Product ID8845
Stock on Request
Last updated: 8/29/2026
Key Features
1
Precision Position SensingThe Festo DSBC-80-25-D3-PPSA-N3 features sensor slots on three sides, allowing for precise position sensing and control in your applications.
2
Adjustable Pneumatic CushioningEquipped with adjustable pneumatic cushioning, this cylinder ensures smooth and controlled movements, reducing wear and tear on your system.
3
High-Performance OperationDesigned for double-acting operation, this cylinder delivers consistent performance in both forward and return strokes, making it ideal for demanding applications.
4
Corrosion ResistanceThe cylinder's external surfaces comply with corrosion resistance class 3 to Festo standard 940 070, ensuring durability in harsh environments.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
25mm
Piston diameter
80 mm
Piston rod thread
M20x1.5
Cushioning
Self-adjusting pneumatic end-position cushioning
Mounting position
Any
Conforms to standard
ISO 15552
Modular Design FlexibilityPart of Festo's modular product system, the DSBC-80-25-D3-PPSA-N3 can be configured to meet individual needs, offering flexibility in system design and integration.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00992970
Variants
Piston rod at one end
Operating pressure
0.4bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
