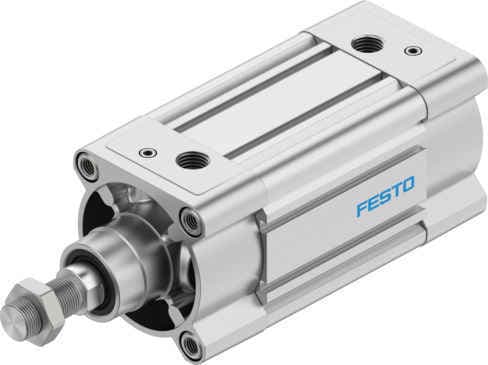

Festo DSBC-80-70-D3-PPVA-N3 ISO cylinder with adjustable pneumatic cushioning and precise position detection. Suitable for high-accuracy applications in compressed air systems.
Product Modeldsbc-80-70-d3-ppva-n3
Material Number3656637
Product ID8834
Stock on Request
Last updated: 8/29/2026
Key Features
1
Adjustable Pneumatic CushioningThe Festo DSBC-80-70-D3-PPVA-N3 features adjustable pneumatic cushioning at both ends, ensuring optimal performance and longevity in various operating conditions.
2
Precision Position DetectionEquipped with proximity sensor slots on three sides (D3 feature), this cylinder allows for precise position detection, enhancing control and accuracy in your applications.
3
Compliance with ISO 15552Conforms to the international standard ISO 15552, ensuring compatibility and reliability in a wide range of industrial settings.
4
Double-Acting OperationDesigned for double-acting operation, this cylinder can move in both forward and return strokes, providing flexibility and efficiency in your processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
70mm
Piston diameter
80 mm
Piston rod thread
M20x1.5
Cushioning
Pneumatic cushioning, adjustable at both ends
Mounting position
Any
Conforms to standard
ISO 15552
5
Robust ConstructionBuilt with high-quality materials, including a wrought aluminum alloy piston and a high-alloy steel piston rod, the Festo DSBC-80-70-D3-PPVA-N3 offers robust construction and durability.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00991235
Variants
Piston rod at one end
Operating pressure
0.4bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
1.8J
Cushioning length
31mm
Theoretical force at 6 bar, retracting
2721N
Theoretical force at 6 bar, advancing
3016N
Moving mass at 0 mm stroke
810g
Additional moving mass per 10 mm stroke
39g
Basic weight with 0 mm stroke
2720g
Additional weight per 10 mm stroke
143g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G3/8
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Rod wiper material
TPE-E
Material of bearing
Metal polymer compound
Flange screws material
Steel, galvanized
Manufacturer ID
3656637
