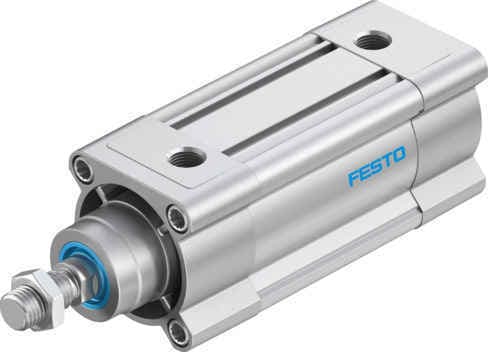

The Festo DSBC-63-60-PPSA-N3 is a double-acting ISO profile cylinder with self-adjusting pneumatic end-position cushioning, ideal for precise and reliable automation applications.
Product Modeldsbc-63-60-ppsa-n3
Material Number2126686
Product ID8413
Stock on Request
Last updated: 8/29/2026
Key Features
1
Self-Adjusting CushioningThe DSBC-63-60-PPSA-N3 features self-adjusting pneumatic end-position cushioning, ensuring smooth and consistent movements even under varying loads and pressures.
2
Robust ConstructionBuilt with high-quality materials, this cylinder offers robust construction and durability, making it suitable for demanding industrial applications.
3
M16x1.5 Piston Rod ThreadEquipped with an M16x1.5 piston rod thread, this cylinder provides a secure and precise connection for various accessories and attachments.
4
Double-Acting DesignThe double-acting design allows for both forward and return strokes to be driven by the same pressure, enhancing efficiency and control in automation tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
60mm
Piston diameter
63 mm
Piston rod thread
M16x1.5
Cushioning
Self-adjusting pneumatic end-position cushioning
Mounting position
Any
Conforms to standard
ISO 15552
5
Built-in MagnetThe DSBC-63-60-PPSA-N3 includes a built-in magnet, facilitating easy installation and positioning of the cylinder in your application.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00992970
Variants
Piston rod at one end
Operating pressure
0.4bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
1.3J
Cushioning length
22mm
Theoretical force at 6 bar, retracting
1682N
Theoretical force at 6 bar, advancing
1870N
Moving mass at 0 mm stroke
430g
Additional moving mass per 10 mm stroke
25g
Basic weight with 0 mm stroke
1740g
Additional weight per 10 mm stroke
62g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G3/8
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Material of bearing
POM
Flange screws material
Steel, galvanized
Manufacturer ID
2126686
