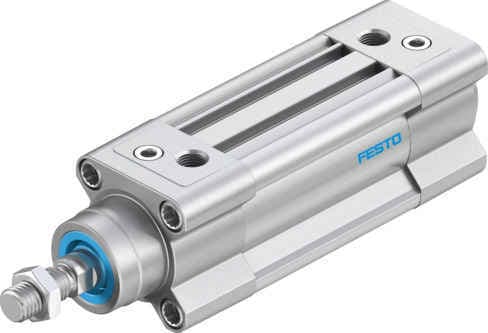

Festo DSBC-32-30-PPVA-N3: High-performance ISO cylinder with 30mm stroke, 32mm piston diameter, and adjustable pneumatic cushioning for efficient pneumatic operations.
Product Modeldsbc-32-30-ppva-n3
Material Number2123070
Product ID8370
Stock on Request
Last updated: 8/29/2026
Key Features
1
High-Performance OperationThe Festo DSBC-32-30-PPVA-N3 is engineered for high-speed and medium to heavy load applications, ensuring reliable performance in demanding environments.
2
Adjustable Pneumatic CushioningEquipped with adjustable pneumatic cushioning (PPV type), this cylinder absorbs energy in end positions, reducing wear and increasing process reliability.
3
Robust ConstructionBuilt with high-alloy steel piston rods and wrought aluminum alloy cylinder barrels, this actuator offers excellent running performance and long service life.
4
Versatile ConnectivityFeaturing a G1/8 pneumatic connection and M10x1.25 piston rod thread, the DSBC-32-30-PPVA-N3 is easily integrated into various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
30mm
Piston diameter
32 mm
Piston rod thread
M10x1.25
Cushioning
Pneumatic cushioning, adjustable at both ends
Mounting position
Any
Conforms to standard
ISO 15552
5
Operational FlexibilityWith a theoretical force of 415 N retracting and 483 N advancing at 6 bar, this cylinder provides precise control over linear motion, making it suitable for a wide range of applications.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00991235
Variants
Piston rod at one end
Operating pressure
0.6bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 6 according to ISO 14644-1
Ambient temperature
-20°C 80°C
Impact energy in the end positions
0.4J
Cushioning length
17mm
Theoretical force at 6 bar, retracting
415N
Theoretical force at 6 bar, advancing
483N
Moving mass at 0 mm stroke
110g
Additional moving mass per 10 mm stroke
9g
Basic weight with 0 mm stroke
465g
Additional weight per 10 mm stroke
27g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G1/8
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Material of bearing
POM
Flange screws material
Steel, galvanized
Manufacturer ID
2123070
