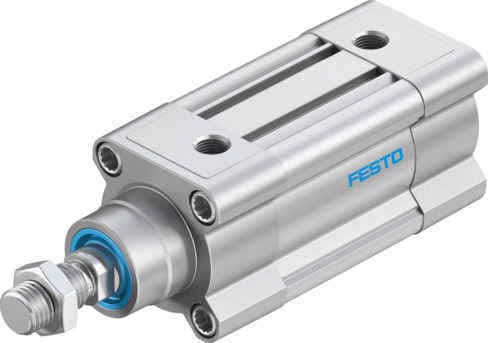

Festo DSBC-50-30-PPSA-N3: 50mm piston diameter, 30mm stroke, self-adjusting pneumatic cushioning. Perfect for precise automation and process control applications.
Product Modeldsbc-50-30-ppsa-n3
Material Number2102629
Product ID8359
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Precision MovementThe Festo DSBC-50-30-PPSA-N3 cylinder ensures precise movement with its 50mm piston diameter and 30mm stroke, making it ideal for applications requiring high accuracy.
2
Self-Adjusting CushioningEquipped with self-adjusting pneumatic end-position cushioning, this cylinder provides smooth and controlled motion, reducing wear and tear on the system.
3
Versatile Mounting OptionsThe cylinder offers versatile mounting positions, allowing for easy integration into various automation systems, including decentralized use in larger systems.
4
Corrosion ResistanceThe external cylinder surfaces comply with corrosion resistance class 3, ensuring the cylinder remains durable and reliable in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
30mm
Piston diameter
50 mm
Piston rod thread
M16x1.5
Cushioning
Self-adjusting pneumatic end-position cushioning
Mounting position
Any
Conforms to standard
ISO 15552
5
Integrated MagnetThe DSBC-50-30-PPSA-N3 features a built-in magnet, enhancing its functionality in applications requiring magnetic interaction, such as in welding systems or other industrial processes.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00992970
Variants
Piston rod at one end
Operating pressure
0.4bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 6 according to ISO 14644-1
Ambient temperature
-20°C 80°C
Impact energy in the end positions
1J
Cushioning length
22mm
Theoretical force at 6 bar, retracting
990N
Theoretical force at 6 bar, advancing
1178N
Moving mass at 0 mm stroke
365g
Additional moving mass per 10 mm stroke
25g
Basic weight with 0 mm stroke
1190g
Additional weight per 10 mm stroke
56g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G1/4
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Material of bearing
POM
Flange screws material
Steel, galvanized
Manufacturer ID
2102629
