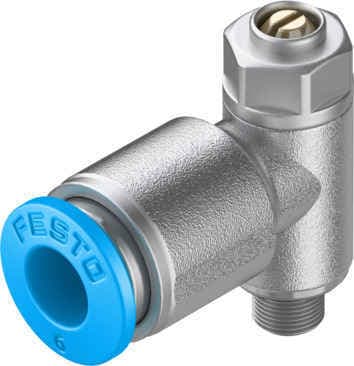

grlz-m5-qs-6-d

Name: grlz-m5-qs-6-d
Brand: FESTO
SKU: grlz-m5-qs-6-d

The Festo GRLZ-M5-QS-6-D one-way flow control valve provides precise control over pneumatic air flow, featuring adjustable settings and a durable design. Perfect for automation tasks, it ensures reliable performance and easy installation.

Product Modelgrlz-m5-qs-6-d

Material Number193155

Product ID7771

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Precise Air Flow ControlThe GRLZ-M5-QS-6-D valve offers precise control over pneumatic air flow, ensuring that your applications run smoothly and efficiently.
2
Adjustable SettingsWith its adjustable settings, you can customize the valve to meet the specific needs of your automation tasks, providing optimal performance.
3
Durable DesignConstructed with high-quality materials, the valve is built to last, ensuring reliable performance even in demanding environments.
4
Easy InstallationDesigned for simplicity, the GRLZ-M5-QS-6-D valve is easy to install, reducing setup time and minimizing downtime.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Valve function

Supply air flow control non-return function

Pneumatic connection 1

QS-6

Pneumatic connection 2

Adjusting element

Slotted screw

Type of mounting

Screw-in

Standard nominal flow rate in flow control direction

115l/min

Versatile ApplicationsSuitable for a wide range of pneumatic applications, this valve is an essential component for any automation system, providing consistent and controlled air flow.

Standard nominal flow rate in non-return direction

70l/min 110l/min

Ambient temperature

-10°C 60°C

Maritime classification

See certificate

Mounting position

Any

Symbol

00991453

Operating pressure for entire temperature range

0.2bar 10bar

Standard flow rate in flow control direction 6 -> 0 bar

170l/min

Standard flow rate in non-return direction at 6 -> 0 bar

160l/min 200l/min

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Temperature of medium

-10°C 60°C

Nominal tightening torque

0.8Nm

Tolerance for nominal tightening torque

± 10%

Product weight

13g

Material of screwed plug

Brass

Note on materials

RoHS-compliant

Seals material

NBR

Releasing ring material

POM

Material of adjusting screw

Brass

Swivel joint material

Die-cast zinc Chromated

Manufacturer ID

193155
