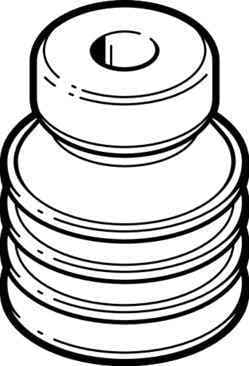

The Festo ESV-20-CS vacuum suction cup provides 7mm height compensation and a 20mm diameter, ensuring precise and reliable handling in various applications.
Product Modelesv-20-cs
Material Number191072
Product ID7481
Stock on Request
Last updated: 8/29/2026
Key Features
1
Precision HandlingThe Festo ESV-20-CS suction cup is designed to handle workpieces with precision, ensuring accurate positioning and minimal movement.
2
Height CompensationWith 7mm height compensation, this suction cup can adapt to different workpiece heights, making it versatile for various applications.
3
Compact DesignThe 20mm diameter of the suction cup makes it compact and easy to integrate into your automation systems, saving space and improving efficiency.
4
Reliable PerformanceBuilt with high-quality materials, the Festo ESV-20-CS suction cup offers reliable performance, ensuring consistent results in your production processes.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Suction cup height compensation
7mm
Min. workpiece radius
50mm
Suction cup diameter
20mm
Suction cup volume
2.75cm3
Connection position
Top
Mounting position
Any
Easy IntegrationThe top connection position of the suction cup simplifies integration into your existing systems, reducing setup time and increasing productivity.
Symbol
00991485
Suction cup shape
Round bellows, 3.5 convolutions
Operating pressure
-13.775psi 0psi
Nominal operating pressure
-10.15psi
Operating medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity
VDMA24364 zone III
For use in the food industry
See supplementary material information
Ambient temperature
-30°C 180°C
Holding force at nominal operating pressure
8.2N
Product weight
2.1g
Color
Transparent
Shore hardness
50 +/- 5
Note on materials
RoHS-compliant
Suction cup material
VMQ (silicone)
Manufacturer ID
191072
