qsy-16-12

Name: qsy-16-12
Brand: FESTO
SKU: qsy-16-12

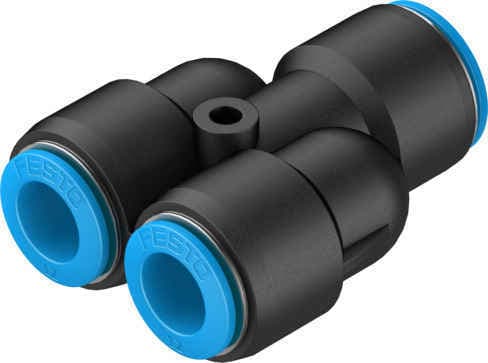

The Festo QSY-16-12 is a reliable push-in Y-connector with a 16mm inlet and 2 x 12mm outlets. It offers high pressure resistance up to 14 bar and operates within a temperature range of -10°C to +80°C, making it ideal for various pneumatic applications.

Product Modelqsy-16-12

Material Number190708

Product ID7281

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Versatile DesignThe Festo QSY-16-12 features a Y-shaped design with 1 x 16mm push-in connector (inlet) and 2 x 12mm push-in connectors (outlets), providing flexibility in connecting pneumatic tubing.
2
High Pressure ResistanceThis connector is designed to handle pressures up to 14 bar, making it suitable for demanding pneumatic applications.
3
Temperature StabilityIt operates within a temperature range of -10°C to +80°C, ensuring reliable performance in various environmental conditions.
4
Easy InstallationThe push-pull design of the QSY-16-12 makes it easy to install, reducing the time and effort required for setup.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

7mm

Mounting position

Any

Design

Y-shape

Pack size

Structural design

Push-pull principle

Durable MaterialsConstructed with polybutylene terephthalate (PBT) body, NBR tubing seal, and polyoxymethylene (POM) releasing ring, this connector offers high abrasion resistance and durability in dynamic applications.

Operating pressure for entire temperature range

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Ambient temperature

-10°C 80°C

Product weight

48g

No. of outlets

No. of supply lines

Pneumatic connection 1

for pneumatic tubing outside diameter 16 mm

Pneumatic connection 2

for pneumatic tubing outside diameter 12 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

190708
