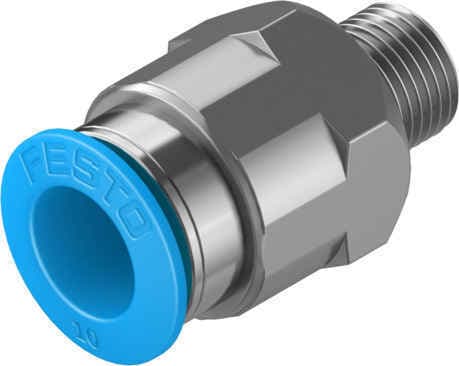

The Festo QS-1/8-10 push-in fitting ensures easy and secure connections for pneumatic tubing, ideal for various industrial applications.
Product Modelqs-1/8-10
Material Number190643
Product ID7248
Stock on Request
Last updated: 8/29/2026
Key Features
1
Easy InstallationThe Festo QS-1/8-10 push-in fitting is designed for quick and effortless installation, reducing downtime and increasing productivity in your pneumatic system.
2
Secure ConnectionWith its robust design, the QS-1/8-10 provides a secure connection that minimizes the risk of leaks, ensuring reliable operation in your pneumatic applications.
3
Universal CompatibilityThe fitting is compatible with a wide range of pneumatic tubing sizes, making it versatile for various industrial applications and easy to integrate into existing systems.
4
High-Quality MaterialsConstructed from high-quality materials, the QS-1/8-10 push-in fitting ensures durability and longevity, even in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
6mm
Type of seal on screwed plug
Coating
Mounting position
Any
Design
Straight design
Pack size
10
5
Easy MaintenanceThe push-in design allows for easy disconnection and reconnection, making maintenance tasks simpler and more efficient, reducing downtime and extending the lifespan of your pneumatic system.
Structural design
Push-pull principle
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media
Operation with oil lubrication possible
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-10°C 80°C
Nominal tightening torque
7Nm
Tolerance for nominal tightening torque
± 20%
Product weight
21g
Type of mounting
External hexagon, AF 17
Pneumatic connection 1
External thread R1/8
Pneumatic connection 2
for pneumatic tubing outside diameter 10 mm
Releasing ring color
Blue
Note on materials
RoHS-compliant
Housing material
Brass, nickel-plated
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
Manufacturer ID
190643
