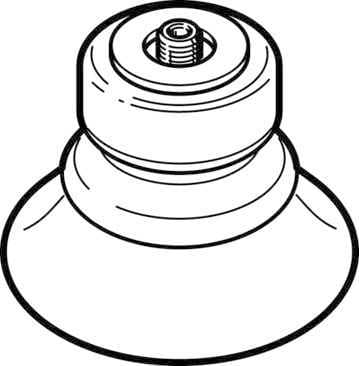

ess-50-bn

Name: ess-50-bn
Brand: FESTO
SKU: ess-50-bn

The Festo ESS-50-BN suction cup complete is designed for precise handling and efficient operations. With a 50mm diameter and 11mm height compensator, it ensures reliable gripping of workpieces. Suitable for various applications in automation.

Product Modeless-50-bn

Material Number189390

Product ID7207

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Precision HandlingThe ESS-50-BN suction cup offers a 50mm diameter and a 3mm nominal size, ensuring precise handling of workpieces with minimal error margin.
2
Height CompensationEquipped with an 11mm height compensator, this suction cup can handle workpieces of varying heights, providing consistent grip performance.
3
Efficient OperationsDesigned for efficient operations, the ESS-50-BN suction cup minimizes downtime and maximizes productivity in your automation processes.
4
Versatile ApplicationsSuitable for a wide range of applications in automation, including handling systems, grippers, and vacuum technology, the ESS-50-BN is a versatile tool for various industries.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Suction cup height compensation

11mm

Min. workpiece radius

150mm

Nominal width

3mm

Suction cup diameter

50mm

Suction cup volume

14.23cm3

Connection position

Top

Reliable PerformanceBuilt with high-quality materials and designed for reliable performance, the ESS-50-BN suction cup ensures consistent results and long-lasting durability.

Classification of suction cup holder

Size 4

Suction cup shape

Round bellows, 1.5 convolutions

Operating pressure

-13.775psi 0psi

Nominal operating pressure

-10.15psi

Operating medium

Atmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-A1-L

For use in the food industry

See supplementary material information

Ambient temperature

-10°C 70°C

Holding force at nominal operating pressure

72.6N

Lateral force at nominal operating pressure

55.5N

Product weight

24.7g

Type of mounting

Via vacuum connection

Vacuum connection

Color

Black

Shore hardness

50 +/- 5

Material of screwed plug

Wrought aluminum alloy, nickel-plated Brass, nickel-plated Steel, galvanized and chrome-plated

Note on materials

RoHS-compliant

Suction cup material

NBR

Manufacturer ID

189390
