ess-80-ef

Name: ess-80-ef
Brand: FESTO
SKU: ess-80-ef

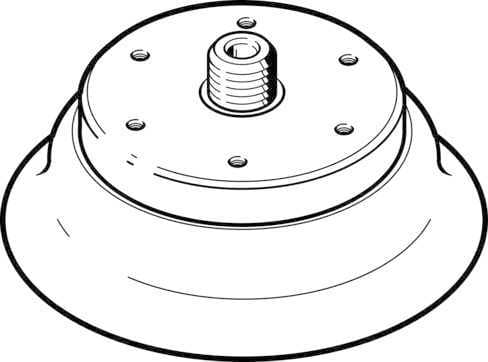

The Festo ESS-80-EF vacuum suction cup offers high-temperature resistance up to +200°C, ensuring reliable performance in various industrial applications. Its 80mm diameter and 6mm nominal width provide precise gripping capabilities.

Product Modeless-80-ef

Material Number189361

Product ID7190

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High-Temperature ResistanceThe ESS-80-EF is designed to withstand temperatures up to +200°C, making it suitable for high-temperature applications.
2
Precise GrippingWith a suction cup diameter of 80mm and a nominal width of 6mm, this suction cup provides precise gripping capabilities for various workpieces.
3
Reliable PerformanceThe Festo ESS-80-EF is engineered for reliable performance, ensuring consistent results in your automation tasks.
4
Versatile UseThis vacuum suction cup is versatile and can be used in a variety of industrial settings, including process automation and factory automation.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Min. workpiece radius

160mm

Nominal width

6mm

Suction cup diameter

80mm

Suction cup volume

51.61cm3

Connection position

Top

Mounting position

Any

High-Quality ConstructionBuilt with high-quality materials, the ESS-80-EF offers durability and long-lasting performance, reducing the need for frequent replacements.

Classification of suction cup holder

Size 5

Suction cup shape

Round, extra-deep

Operating pressure

-13.775psi 0psi

Nominal operating pressure

-10.15psi

Operating medium

Atmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-A1-L

For use in the food industry

See supplementary material information

Ambient temperature

-10°C 200°C

Holding force at nominal operating pressure

275N

Lateral force at nominal operating pressure

148.5N

Product weight

141g

Type of mounting

Via vacuum connection

Vacuum connection

M10

Color

Gray

Shore hardness

60 +/- 5

Material of screwed plug

POM Steel, nickel-plated Steel, galvanized and chrome-plated

Note on materials

RoHS-compliant

Suction cup material

FPM

Manufacturer ID

189361
