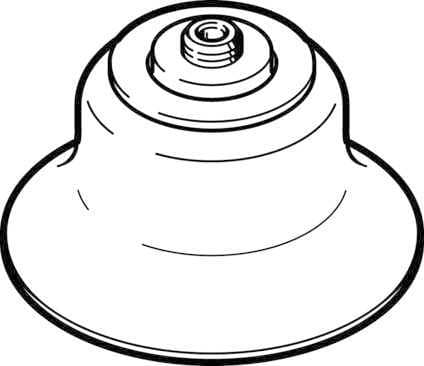

The Festo ESS-40-EF suction cup offers precise vacuum handling with a 40 mm diameter and 4.04 cm³ volume, ensuring reliable performance in various automation tasks.
Product Modeless-40-ef
Material Number189349
Product ID7178
Stock on Request
Last updated: 8/29/2026
Key Features
1
Precision HandlingThe Festo ESS-40-EF suction cup provides precise vacuum handling, ensuring accurate and reliable operation in automation tasks.
2
High-Quality MaterialConstructed from high-quality materials, this suction cup ensures durability and long-lasting performance in demanding environments.
3
Versatile ApplicationSuitable for a wide range of automation tasks, the ESS-40-EF can be used in various industries, including process automation and industrial trades.
4
Efficient DesignWith a 40 mm diameter and 4.04 cm³ volume, this suction cup is designed to maximize efficiency and minimize downtime, enhancing overall production efficiency.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Min. workpiece radius
80mm
Nominal width
3mm
Suction cup diameter
40mm
Suction cup volume
4.04cm3
Connection position
Top
Mounting position
Any
Easy InstallationThe ESS-40-EF features a top connection position, making it easy to integrate into existing systems, reducing installation time and complexity.
Symbol
00991485
Classification of suction cup holder
Size 4
Suction cup shape
Round, extra-deep
Operating pressure
-13.775psi 0psi
Nominal operating pressure
-10.15psi
Operating medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-A1-L
For use in the food industry
See supplementary material information
Ambient temperature
-10°C 200°C
Holding force at nominal operating pressure
67.6N
Lateral force at nominal operating pressure
22N
Product weight
16.9g
Type of mounting
Via vacuum connection
Vacuum connection
M6
Color
Gray
Shore hardness
60 +/- 5
Material of screwed plug
Wrought aluminum alloy, nickel-plated Brass, nickel-plated Steel, galvanized and chrome-plated
Note on materials
RoHS-compliant
Suction cup material
FPM
Manufacturer ID
189349
