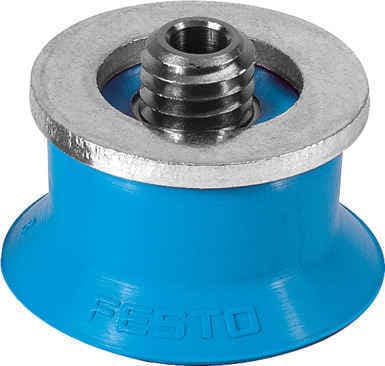

Precision HandlingThe ESS-30-EU is designed to handle workpieces with a minimum radius of 50mm, ensuring precise and accurate handling in various industrial applications.
2
Reliable PerformanceWith a suction cup volume of 2.12 cm³, the ESS-30-EU provides consistent and reliable performance, making it a trusted choice for demanding tasks.
3
Easy MountingThe top connection position and versatile mounting options make the ESS-30-EU easy to integrate into your existing systems, reducing setup time and increasing productivity.
4
Compact DesignThe compact size of the suction cup (30mm diameter) allows for efficient use in confined spaces, making it suitable for a wide range of industrial settings.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Min. workpiece radius
50mm
Nominal width
3mm
Suction cup diameter
30mm
Suction cup volume
2.12cm3
Connection position
Top
Mounting position
Any
High-Quality MaterialsConstructed from high-quality materials, the ESS-30-EU is durable and resistant to wear and tear, ensuring long-lasting performance and minimal maintenance needs.
Symbol
00991485
Classification of suction cup holder
Size 4
Suction cup shape
Round, extra-deep
Operating pressure
-13.775psi 0psi
Nominal operating pressure
-10.15psi
Operating medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364 zone III
For use in the food industry
See supplementary material information
Ambient temperature
-20°C 60°C
Holding force at nominal operating pressure
37.2N
Lateral force at nominal operating pressure
41.5N
Product weight
9.2g
Type of mounting
Via vacuum connection
Vacuum connection
M6
Color
Blue
Shore hardness
60 +/- 5
Material of screwed plug
Brass, nickel-plated Steel, galvanized and chrome-plated
