qsmk-g1/4-6

Name: qsmk-g1/4-6
Brand: FESTO
SKU: qsmk-g1/4-6

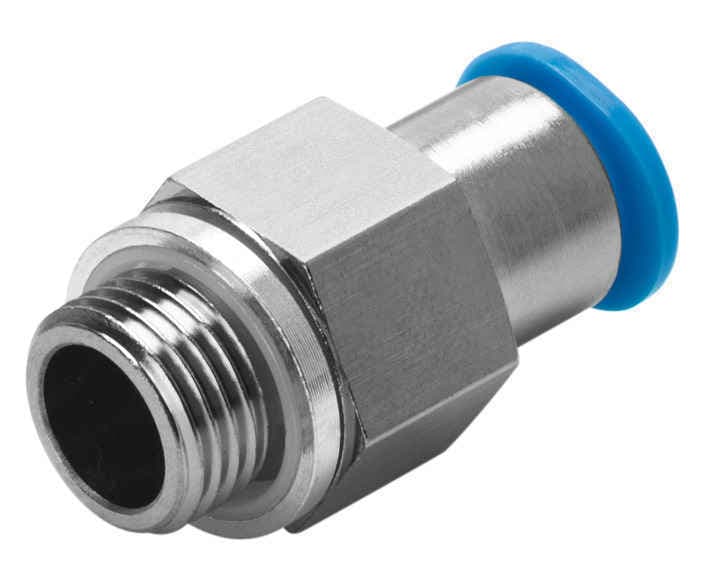

The Festo QSMK-G1/4-6 push-in fitting is a self-sealing, external hexagon connector designed for pneumatic applications. It features a male thread G1/4 and is ideal for quick and easy installation, ensuring reliable connections in various industrial settings.

Product Modelqsmk-g1/4-6

Material Number186296

Product ID6564

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Quick InstallationThe QSMK-G1/4-6 push-in fitting allows for fast and easy installation, reducing downtime and increasing productivity in your industrial setup.
2
Self-Sealing DesignThe self-sealing feature ensures that the connection remains tight and leak-free, even after repeated use, providing a reliable pneumatic connection.
3
External Hexagon MountingThe external hexagon mounting (AF 17) provides a secure and stable connection, making it suitable for various pneumatic applications.
4
Pneumatic CompatibilityDesigned with a male thread G1/4, this fitting is compatible with a wide range of pneumatic systems, making it versatile for different industrial needs.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

3mm

Approved tubing type

PAN- PAN-MF- PAN-R- PAN-V0- PEN- PFAN- PLN- PTFEN- PUN- PUN-CM- PUN-DUO- PUN-H- PUN-H-DUO- PUN-S- PUN-S-DUO- PUN-V0-

Tubing insertion depth

13.4mm

Type of seal on screwed plug

Sealing ring

Mounting position

Any

Compliance and DurabilityThe QSMK-G1/4-6 is RoHS-compliant and features a durable design, ensuring long-lasting performance in demanding industrial environments.

Design

Straight design

Pack size

Structural design

Push-pull principle

Operating pressure for entire temperature range

-13.775psi 87psi

Temperature-dependent operating pressure

-13.775psi 203psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-]

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-10°C 80°C

Nominal tightening torque

9Nm

Tolerance for nominal tightening torque

± 20%

Product weight

26g

Type of mounting

External hexagon, AF 17

Pneumatic connection 1

External thread G1/4

Pneumatic connection 2

for pneumatic tubing outside diameter 6 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

Brass, nickel-plated

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

186296
