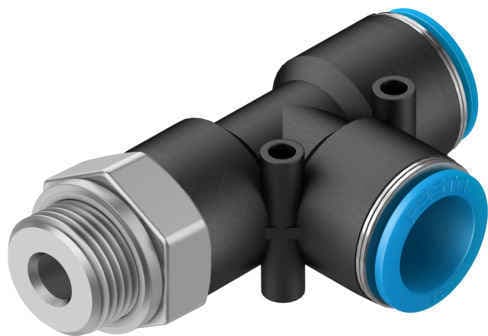

qstl-g1/2-16

Name: qstl-g1/2-16
Brand: FESTO
SKU: qstl-g1/2-16

Short Description: Festo QSL-G1/2-16 Push-In L-Fitting: 360° orientable, sealing ring, standard size, 13 mm nominal size, operating pressure up to 6 bar, suitable for compressed air and water applications.

Product Modelqstl-g1/2-16

Material Number186178

Product ID6446

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
360° Orientable DesignThe Festo QSL-G1/2-16 offers a 360° orientable design, allowing for easy installation and flexibility in various applications.
2
Sealing Ring for Secure ConnectionEquipped with a sealing ring, this push-in fitting ensures a secure and leak-free connection, enhancing the reliability of your pneumatic system.
3
Wide Operating Pressure RangeThe QSL-G1/2-16 operates within a wide pressure range of -0.95 to 6 bar, making it suitable for various pneumatic applications.
4
Corrosion ResistanceClassified as CRC 1, this fitting exhibits low corrosion stress, ensuring durability and longevity in demanding environments.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

13mm

Type of seal on screwed plug

Sealing ring

Mounting position

Any

Design

L-shape, additional push-in connector, lengthwise

Pack size

Versatile Operating MediumCompatible with compressed air (ISO8573-1:2010) and water, the QSL-G1/2-16 is versatile and can be used in multiple applications, including lubricated operations.

Operating pressure for entire temperature range

-13.775psi 87psi

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Ambient temperature

-10°C 80°C

Nominal tightening torque

26Nm

Tolerance for nominal tightening torque

± 20%

Product weight

89g

No. of outlets

No. of supply lines

Type of mounting

External hexagon, AF 24

Pneumatic connection 1

External thread G1/2

Pneumatic connection 2

for pneumatic tubing outside diameter 16 mm

Releasing ring color

Blue

Material of screwed plug

Brass, nickel-plated

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

186178
