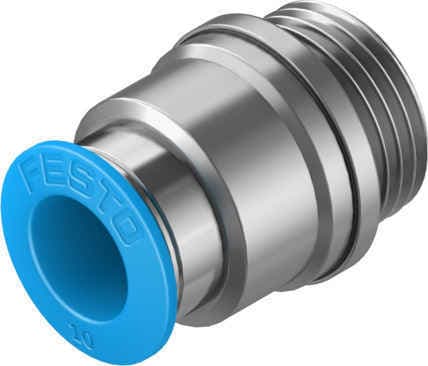

Festo QS-G3/8-10-I: A reliable, one-touch push-in fitting for connecting hoses and pipes in pneumatic systems.
Product Modelqs-g3/8-10-i
Material Number186113
Product ID6381
Stock on Request
Last updated: 8/29/2026
Key Features
1
Easy InstallationThe Festo QS-G3/8-10-I features a one-touch design, making it simple to connect and disconnect pneumatic hoses and pipes without the need for tools.
2
Durable ConstructionBuilt with high-quality materials, this push-in fitting ensures a secure and long-lasting connection, even under high operating pressures.
3
Versatile ApplicationSuitable for a wide range of pneumatic applications, including industrial automation, robotics, and medical devices, the QS-G3/8-10-I offers versatility and reliability.
4
Corrosion ResistanceMade from corrosion-resistant materials, the QS-G3/8-10-I can withstand various operating mediums, including compressed air and water, ensuring consistent performance over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
7.3mm
Type of seal on screwed plug
Sealing ring
Mounting position
Any
Design
Straight design
Pack size
10
5
Compact DesignWith a compact size and lightweight design, the QS-G3/8-10-I is easy to handle and integrate into tight spaces, making it ideal for complex pneumatic systems.
Structural design
Push-pull principle
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media
Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory
