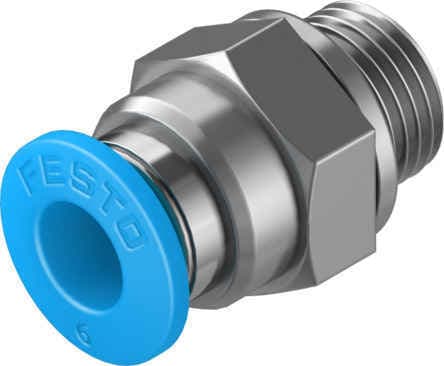

Short Product Description: Festo QS-G1/8-6 - Straight pneumatic fitting with 1/8" BSPP male and 6mm push-in connectors, ideal for compressed air applications.
Product Modelqs-g1/8-6-i
Material Number186107
Product ID6375
Stock on Request
Last updated: 8/29/2026
Key Features
1
Reliable PerformanceThe QS-G1/8-6 features a nickel-plated brass body, ensuring high corrosion resistance and durability in demanding environments.
2
Easy InstallationWith its optimized bending radius, the fitting is easy to install, reducing installation time and effort.
3
Flexible DesignThe fitting supports a wide range of applications due to its highly resistant materials and versatile connection options.
4
High Pressure and Temperature RangeDesigned to operate within a pressure range of -0.95 to 14 bar and an ambient temperature range of -10 to 80°C, making it suitable for various industrial conditions.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
4.2mm
Type of seal on screwed plug
Sealing ring
Mounting position
Any
Design
Straight design
Pack size
10
Compliant with StandardsMeets ISO 8573-1-2010 standards, ensuring compliance with industry regulations and enhancing the reliability of your pneumatic systems.
Structural design
Push-pull principle
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media
Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory
