qs-g3/8-10

Name: qs-g3/8-10
Brand: FESTO
SKU: qs-g3/8-10

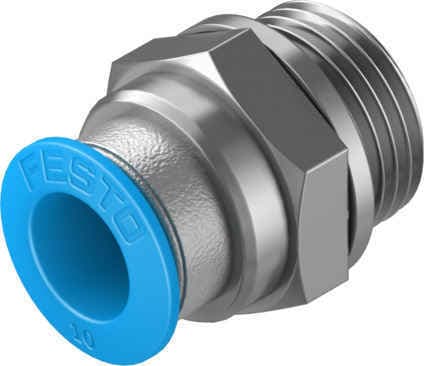

The Festo QS-G3/8-10 push-in fitting is a versatile and reliable component for pneumatic systems. It ensures easy and secure connections with its push-pull principle and gasket seal, making it suitable for various applications including compressed air and water.

Product Modelqs-g3/8-10

Material Number186102

Product ID6370

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Easy InstallationThe QS-G3/8-10 push-in fitting offers an arbitrary installation position, allowing for flexible placement in your pneumatic setup.
2
Reliable SealEquipped with a gasket seal, this fitting provides a secure and leak-free connection, ensuring the integrity of your pneumatic system.
3
Wide Operating RangeIt operates within a temperature range of -10°C to 80°C and a pressure range of -0.95 to 6 bar, making it suitable for various environmental conditions.
4
Corrosion ResistanceClassified as KBK 1, this fitting has a low corrosion stress, making it durable and long-lasting in harsh environments.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

9mm

Type of seal on screwed plug

Sealing ring

Mounting position

Any

Design

Straight design

Pack size

Versatile CompatibilityCompatible with compressed air to ISO 8573-1:2010 and water according to manufacturer declaration, this fitting is ideal for a wide range of pneumatic and hydraulic applications.

Operating pressure for entire temperature range

-13.775psi 87psi

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-10°C 80°C

Nominal tightening torque

15.5Nm

Tolerance for nominal tightening torque

± 20%

Product weight

22g

Type of mounting

External hexagon, AF 19

Pneumatic connection 1

External thread G3/8

Pneumatic connection 2

for pneumatic tubing outside diameter 10 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

Brass, nickel-plated

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

186102
