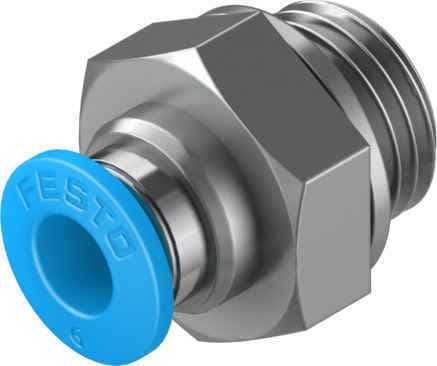

qs-g1/4-6

Name: qs-g1/4-6
Brand: FESTO
SKU: qs-g1/4-6

Short Product Description: The Festo QS-G1/4-6 push-in fitting provides a secure and efficient connection for compressed air and water applications. Its straight design and sealing ring ensure reliable operation over a wide temperature range.

Product Modelqs-g1/4-6

Material Number186097

Product ID6365

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Reliable Sealing RingThe QS-G1/4-6 features a sealing ring that ensures a tight seal, preventing leaks and maintaining system integrity.
2
Wide Operating Pressure RangeThis fitting operates effectively within a temperature-dependent range of -0.095 MPa to 1.4 MPa, making it suitable for various industrial applications.
3
Easy InstallationThe push-in design allows for quick and simple installation, reducing setup time and increasing productivity.
4
Corrosion ResistanceWith a corrosion resistance class of CRC 1, the QS-G1/4-6 is designed to withstand low corrosion stress, ensuring durability in harsh environments.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

5mm

Type of seal on screwed plug

Sealing ring

Mounting position

Any

Design

Straight design

Pack size

Compliance with StandardsThe fitting meets ISO 8573-1:2010 standards for compressed air and is compatible with water (liquid, ice-free) up to 0.6 MPa at 50°C, making it a versatile choice for diverse applications.

Operating pressure for entire temperature range

-13.775psi 87psi

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-10°C 80°C

Nominal tightening torque

9Nm

Tolerance for nominal tightening torque

± 20%

Product weight

17g

Type of mounting

External hexagon, AF 17

Pneumatic connection 1

External thread G1/4

Pneumatic connection 2

for pneumatic tubing outside diameter 6 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

Brass, nickel-plated

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

186097
