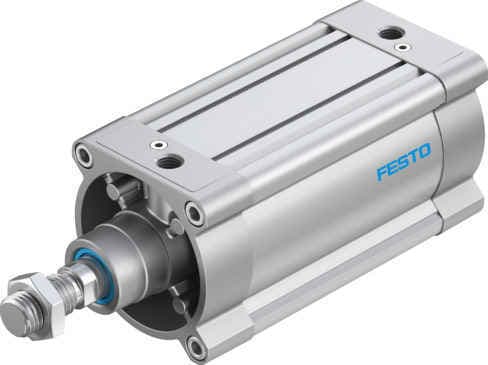

Festo DSBC-125-125-PPVA-N3: Adjustable pneumatic cushioning, double-acting operation, ISO 15552 compliant, 125 mm stroke, M27x2 piston rod thread.
Product Modeldsbc-125-125-ppva-n3
Material Number1804961
Product ID6179
Stock on Request
Last updated: 8/29/2026
Key Features
1
Adjustable CushioningThe DSBC-125-125-PPVA-N3 features pneumatic cushioning that is adjustable at both ends, ensuring optimal control and minimizing shock loads during operation.
2
ISO 15552 ComplianceThis cylinder meets the stringent standards of ISO 15552, guaranteeing high-quality performance and reliability in a wide range of industrial applications.
3
Double-Acting OperationDesigned for versatility, the DSBC-125-125-PPVA-N3 operates in both forward and return strokes, making it suitable for applications requiring simultaneous action in both directions.
4
Precise Position DetectionEquipped with proximity sensor slots, this cylinder allows for precise position detection, enhancing the accuracy and efficiency of your automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
125mm
Piston diameter
125 mm
Piston rod thread
M27x2
Cushioning
Pneumatic cushioning, adjustable at both ends
Mounting position
Any
Conforms to standard
ISO 15552
5
Robust ConstructionBuilt with high-alloy steel for the piston rod and smooth-anodized wrought aluminum alloy for the cylinder barrel, the DSBC-125-125-PPVA-N3 offers a robust and durable design that withstands various operating pressures and temperatures.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00991235
Variants
Piston rod at one end
Operating pressure
0.2bar 10bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
