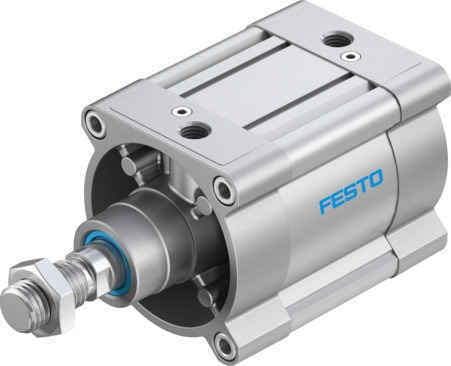

Adjustable CushioningThe DSBC-125-25-PPVA-N3 features pneumatic cushioning that is adjustable at both ends, ensuring optimal performance and durability in various operating conditions.
2
High-Performance OperationWith a piston diameter of 125 mm and a stroke of 25 mm, this cylinder delivers high forces of 6881 N (return stroke) and 7363 N (advance stroke) at 6 bar.
3
Versatile Mounting OptionsThe cylinder can be mounted via female thread or with accessories, providing flexibility in installation. It also supports arbitrary mounting positions.
4
Compliance with Industry StandardsThe DSBC-125-25-PPVA-N3 conforms to ISO 15552, ensuring compatibility with a wide range of pneumatic systems and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
25mm
Piston diameter
125 mm
Piston rod thread
M27x2
Cushioning
Pneumatic cushioning, adjustable at both ends
Mounting position
Any
Conforms to standard
ISO 15552
5
Robust Materials and ConstructionMade from high-quality materials such as wrought aluminum alloy for the piston, high-alloy steel for the piston rod, and TPE-U(PU) for seals, this cylinder offers excellent corrosion resistance and durability.
6
Position Detection CapabilityEquipped with proximity switch position detection, the DSBC-125-25-PPVA-N3 ensures precise control and monitoring of its operation.
7
Wide Operating Temperature RangeThe cylinder operates within a temperature range of -20°C to 80°C, making it suitable for various industrial environments.
8
Lubricated Operation PossibleThe cylinder can operate with oil lubrication, which is required for further use, ensuring smooth and efficient operation.
9
Impact Energy ControlThe DSBC-125-25-PPVA-N3 has an impact energy of 3.3 J in the end positions, providing controlled and safe operation.
10
Compact DesignWith a cushioning length of 45 mm and a compact design, this cylinder is ideal for applications where space is limited.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00991235
Variants
Piston rod at one end
Operating pressure
0.2bar 10bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
