dsbc-125-160-ppsa-n3

Name: dsbc-125-160-ppsa-n3
Brand: FESTO
SKU: dsbc-125-160-ppsa-n3

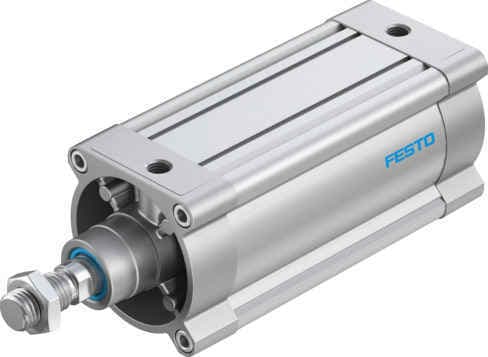

The Festo DSBC-125-160-PPSA-N3 is a standards-based pneumatic cylinder featuring a 160mm stroke and a 125mm piston diameter. It includes self-adjusting pneumatic end-position cushioning, making it ideal for precise and reliable automation tasks. Conforming to ISO 15552, this cylinder ensures compatibility with a wide range of industrial systems.

Product Modeldsbc-125-160-ppsa-n3

Material Number1804667

Product ID6168

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High Precision and ReliabilityThe Festo DSBC-125-160-PPSA-N3 offers precise control with its self-adjusting pneumatic end-position cushioning, ensuring reliable operation in various industrial applications.
2
Compliance with International StandardsConforming to ISO 15552, this cylinder ensures compatibility with a wide range of industrial systems, making it a versatile choice for automation tasks.
3
Robust ConstructionBuilt with high-quality materials, including die-cast aluminum, wrought aluminum alloy, and high-alloy steel, the DSBC-125-160-PPSA-N3 provides a robust construction that withstands moderate corrosion stress.
4
Versatile Mounting OptionsThe cylinder can be mounted via a female thread or with accessories, offering flexibility in installation and integration into different automation setups.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

160mm

Piston diameter

125 mm

Piston rod thread

M27x2

Cushioning

Self-adjusting pneumatic end-position cushioning

Mounting position

Any

Conforms to standard

ISO 15552

Efficient OperationDesigned for double-acting operation with compressed air as per ISO 8573-1:2010 [7:4:4], this cylinder ensures efficient movement and performance in both retracting and advancing strokes.

Structural design

Piston Piston rod Profile barrel

Position sensing

For proximity sensor

Symbol

00992970

Variants

Piston rod at one end

Operating pressure

0.2bar 10bar

Mode of operation

Double-acting

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

3.3J

Cushioning length

45mm

Theoretical force at 6 bar, retracting

6881N

Theoretical force at 6 bar, advancing

7363N

Moving mass at 0 mm stroke

2245g

Additional moving mass per 10 mm stroke

63g

Basic weight with 0 mm stroke

6611g

Additional weight per 10 mm stroke

151g

Type of mounting

Optionally: With internal thread With accessories

Pneumatic connection

G1/2

Note on materials

RoHS-compliant

Cover material

Die-cast aluminum, coated

Piston seal material

TPE-U(PU)

Material of piston

Wrought aluminum alloy

Piston rod material

High-alloy steel

Piston rod wiper material

TPE-U(PU)

Buffer seal material

TPE-U(PU)

Cushion piston material

POM

Material of cylinder barrel

Wrought aluminum alloy, smooth-anodized

Nut material

Steel, galvanized

Material of bearing

POM

Flange screws material

Steel, galvanized

Manufacturer ID

1804667
