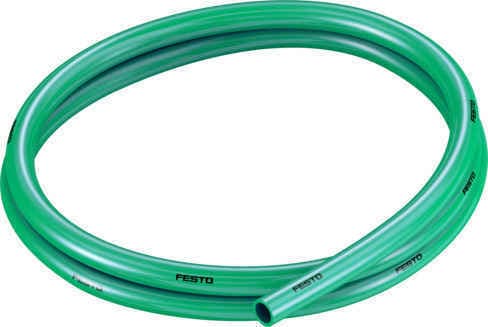

High-quality 10mm polyurethane tubing for precise pneumatic control, featuring a 54mm flow-relevant bending radius and 7mm inside diameter.
Product Modelpun-10x1,5-gn
Material Number178427
Product ID6132
Stock on Request
Last updated: 8/29/2026
Key Features
1
Optimized Bending RadiusThe PUN-10X1,5-GN tubing boasts a flow-relevant bending radius of 54mm, ensuring minimal pressure loss and efficient fluid flow, even in complex systems.
2
Durability and ReliabilityConstructed from high-quality polyurethane, this tubing offers exceptional durability and resistance to wear and tear, making it perfect for demanding industrial applications.
3
Precise ControlWith an inside diameter of 7mm, the PUN-10X1,5-GN tubing provides precise control over pneumatic systems, allowing for accurate and reliable operation.
4
Minimized Pressure LossThe optimized design of the PUN-10X1,5-GN tubing minimizes pressure loss, ensuring consistent performance and efficiency in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Outside diameter
10mm
Bending radius relevant for flow rate
54mm
Inside diameter
7mm
Min. bending radius
28mm
Application note
TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.
Tubing characteristics
Suitable for energy chains
5
Versatile ApplicationSuitable for a wide range of pneumatic applications, including automation, manufacturing, and robotics, the PUN-10X1,5-GN tubing is a versatile solution for various industries.
