pun-10x1,5-ge

Name: pun-10x1,5-ge
Brand: FESTO
SKU: pun-10x1,5-ge

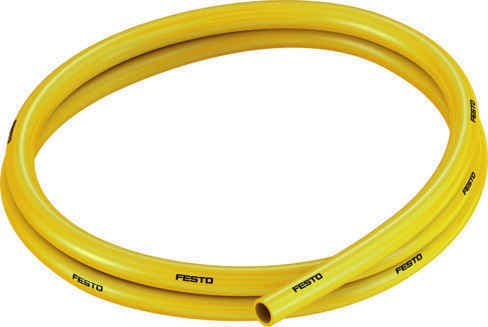

Festo PUN-10X1,5-GE plastic tubing offers a 10mm O.D., 54mm flow-relevant bending radius, and 7mm I.D. Suitable for energy chains, with TPE-U ester-based instructions and TÜV approval.

Product Modelpun-10x1,5-ge

Material Number178420

Product ID6126

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High-Quality MaterialMade from TPE-U (Thermoplastic Elastomer-Urethane), ensuring durability and resistance to various temperatures.
2
Optimized DesignFeatures a 10mm outside diameter and 7mm inside diameter, providing efficient flow and minimal pressure loss.
3
Flexible Bending RadiusWith a flow-relevant bending radius of 54mm and a minimum bending radius of 28mm, it offers flexibility in installation and use.
4
Compliant with StandardsMeets TÜV (German Technical Control Board) standards, ensuring safety and reliability in pneumatic systems.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Outside diameter

10mm

Bending radius relevant for flow rate

54mm

Inside diameter

7mm

Min. bending radius

28mm

Application note

TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.

Tubing characteristics

Suitable for energy chains

Versatile ApplicationsSuitable for energy chains and pneumatic systems, making it a versatile solution for various industrial applications.

Temperature RangeOperates effectively within an ambient temperature range of -35°C to 60°C, making it suitable for diverse environments.

Fire Test ComplianceCompliant with UL94 HB fire test material, ensuring safety in high-temperature applications.

Pneumatic ConnectionCompatible with push-in connectors, facilitating easy integration into pneumatic systems.

RoHS ComplianceCompliant with RoHS (Restriction of Hazardous Substances) regulations, ensuring environmental safety.

German EngineeringDesigned and manufactured by Festo, a renowned brand in pneumatic and automation solutions, guaranteeing high-quality performance.

Operating pressure for entire temperature range

-13.775psi 101.5psi

Temperature-dependent operating pressure

-13.775psi 145psi

Certification

German Technical Control Board (TüV)

Certificate issuing authority

B 013277 0506 00

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-]

Material fire test

UL94 HB

LABS (PWIS) conformity

VDMA24364-B2-L

Ambient temperature

-35°C 60°C

Product weight by length

0.0489kg/m

Pneumatic connection

For plug connection outside diameter 10 mm

Color

Yellow

Shore hardness

D 52 +/-3

Note on materials

RoHS-compliant

Material of pneumatic tubing

TPE-U(PU)

Manufacturer ID

178420
