pun-16x2,5-rt

Name: pun-16x2,5-rt
Brand: FESTO
SKU: pun-16x2,5-rt

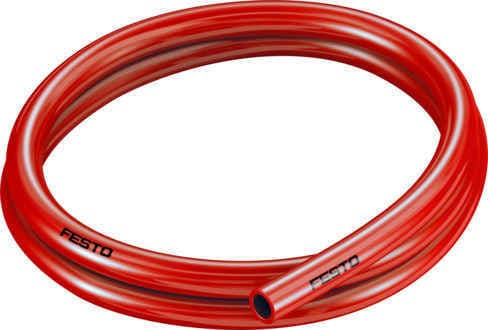

Festo PUN-16X2,5-RT plastic tubing offers a 16mm O.D., 88mm flow-relevant bending radius, and 11mm I.D. Suitable for energy chains and compressed air systems, ensuring reliable performance in various pneumatic applications.

Product Modelpun-16x2,5-rt

Material Number178415

Product ID6120

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High-Quality MaterialMade from TPE-U Ester, ensuring durability and resistance to various environmental conditions.
2
Optimized Bending RadiusFeatures a flow-relevant bending radius of 88mm, maximizing efficiency in pneumatic systems.
3
Compact DesignWith an inside diameter of 11mm, it fits seamlessly into tight spaces, making it ideal for energy chains and compressed air systems.
4
Robust ConstructionMinimum bending radius of 45mm, providing stability and reducing the risk of damage during installation.
5
Compliance and Safety

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Outside diameter

16mm

Bending radius relevant for flow rate

88mm

Inside diameter

11mm

Min. bending radius

45mm

Application note

TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.

Tubing characteristics

Suitable for energy chains

Meets German Technical Control Board (TÜV) approval and UL94 HB fire test material standards, ensuring compliance with safety regulations.

Versatile Operating PressureSupports operating pressures up to 7BAR (101.5PSI) and temperature ranges from -35°C to 60°C, making it suitable for diverse applications.

Easy InstallationCompatible with push-in connectors, simplifying the installation process and reducing setup time.

Long-Term ReliabilityRoHS-compliant and D 52 +/-3 shore hardness, ensuring long-term reliability and performance in various environments.

Free Lifetime Tech SupportIncludes free lifetime technical support, providing peace of mind and ensuring optimal performance throughout its lifespan.

Free ShippingEligible for free shipping on orders over $1,000, making it an economical choice for bulk purchases.

Operating pressure for entire temperature range

-13.775psi 101.5psi

Temperature-dependent operating pressure

-13.775psi 145psi

Certification

German Technical Control Board (TüV)

Certificate issuing authority

B 013277 0506 00

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-]

Material fire test

UL94 HB

LABS (PWIS) conformity

VDMA24364-B2-L

Ambient temperature

-35°C 60°C

Product weight by length

0.1294kg/m

Pneumatic connection

For plug connection outside diameter 16 mm

Color

Red

Shore hardness

D 52 +/-3

Note on materials

RoHS-compliant

Material of pneumatic tubing

TPE-U(PU)

Manufacturer ID

178415
