advu-16- -a-p-a-r3

Name: advu-16- -a-p-a-r3
Brand: FESTO
SKU: advu-16- -a-p-a-r3

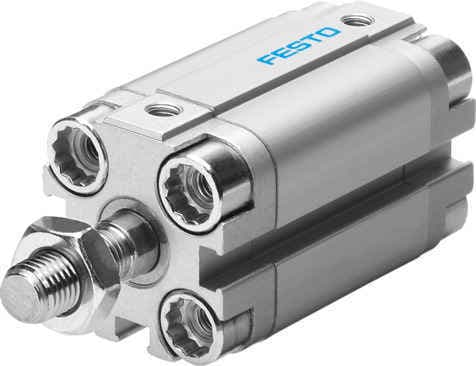

The Festo ADVU-16- -A-P-A-R3 is a compact, double-acting pneumatic cylinder with elastic cushioning rings/plates at both ends. It offers flexible mounting options and is designed for high precision and reliability in various industrial applications.

Product Modeladvu-16- -a-p-a-r3

Material Number176852

Product ID5935

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High Precision and ReliabilityThe Festo ADVU-16- -A-P-A-R3 is engineered for precise operation, ensuring consistent performance in demanding industrial environments.
2
Flexible Mounting OptionsWith optional mounting positions and through-hole or accessory mounting options, this cylinder can be easily integrated into various systems.
3
Elastic CushioningThe elastic cushioning rings/plates at both ends provide smooth operation and reduce wear on the cylinder, extending its lifespan.
4
Corrosion ResistanceDesigned with high corrosion protection (CRC 3), this cylinder is suitable for harsh environments and can withstand high corrosion stress.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

1mm 200mm

Piston diameter

16 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Double-acting

Piston rod end

External thread

Operational FlexibilityThe cylinder operates within a pressure range of 0.12 MPa to 1 MPa (1.2 bar to 10 bar), making it adaptable to a variety of pneumatic systems and applications.

Position sensing

For proximity sensor

Symbol

00991217

Variants

High corrosion protection

Operating pressure

17.4psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

3 - High corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, retracting

91N

Theoretical force at 6 bar, advancing

121N

Moving mass at 0 mm stroke

12g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

89g

Additional weight per 10 mm stroke

15g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

High-alloy stainless steel

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

176852
