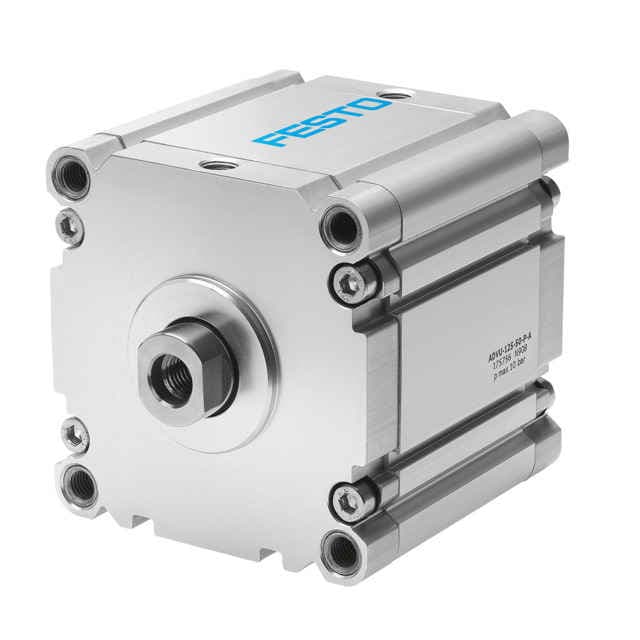

Precision EngineeringDescription: The Festo ADVU-125-P-A-S6 is engineered with precision, ensuring accurate movements and reliable performance in demanding industrial environments.
2
Flexible CushioningDescription: Equipped with flexible cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
3
Proximity SensingDescription: The ADVU-125-P-A-S6 features proximity sensing capabilities, allowing for precise control and monitoring of the cylinder’s position, enhancing overall system efficiency.
4
Robust ConstructionDescription: Built with robust construction, this compact cylinder can withstand various operating pressures and ambient conditions, making it suitable for diverse industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 400mm
Piston diameter
125 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
Internal thread
5
Heat ResistanceDescription: The S6 variant of the ADVU-125-P-A-S6 offers heat resistance up to 120°C, ensuring optimal performance in high-temperature environments, which is crucial for many industrial processes.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991217
Variants
Heat-resistant seals max. 120°C
Operating pressure
7.25psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
0°C 120°C
Impact energy in the end positions
3.3J
Theoretical force at 6 bar, retracting
6881N
Theoretical force at 6 bar, advancing
7363N
Moving mass at 0 mm stroke
1317g
Additional moving mass per 10 mm stroke
63g
Basic weight with 0 mm stroke
3426g
Additional weight per 10 mm stroke
168g
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
G1/4
Flange screws material
Steel, galvanized
Cover material
Wrought aluminum alloy
Material of dynamic seals
FPM
Piston rod material
High-alloy steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
175761
