advu-125-20-p-a

Name: advu-125-20-p-a
Brand: FESTO
SKU: advu-125-20-p-a

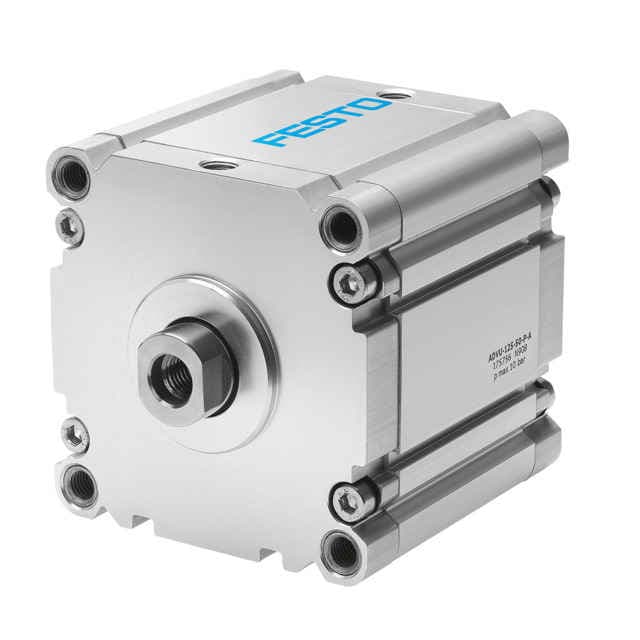

The Festo ADVU-125-20-P-A compact cylinder is a high-performance pneumatic solution featuring a 125mm piston diameter and 20mm stroke. It includes elastic cushioning rings/plates at both ends and offers versatile mounting options.

Product Modeladvu-125-20-p-a

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High-Performance DesignThe Festo ADVU-125-20-P-A is engineered for high-performance applications, ensuring reliable operation in demanding environments.
2
Versatile Mounting OptionsThis compact cylinder offers optional mounting positions, including through-hole and female thread configurations, providing flexibility in installation.
3
Elastic CushioningEquipped with elastic cushioning rings/plates at both ends, the ADVU-125-20-P-A reduces wear and tear, extending the lifespan of the cylinder.
4
Wide Operating Pressure RangeThe cylinder operates within a wide pressure range (0.12 to 1 MPa), making it suitable for various industrial applications.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

20mm

Piston diameter

125 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Double-acting

Piston rod end

Internal thread

ISO ComplianceThe Festo ADVU-125-20-P-A conforms to ISO 1179-1 and ISO 228-1 standards, ensuring compatibility with international specifications and regulations.

Position sensing

For proximity sensor

Symbol

00991217

Variants

Piston rod at one end

Operating pressure

7.25psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

3.3J

Theoretical force at 6 bar, retracting

6881N

Theoretical force at 6 bar, advancing

7363N

Moving mass at 0 mm stroke

1317g

Additional moving mass per 10 mm stroke

63g

Basic weight with 0 mm stroke

3426g

Additional weight per 10 mm stroke

168g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

G1/4

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

175752
