advul-25- -p-a-s2

Name: advul-25- -p-a-s2
Brand: FESTO
SKU: advul-25- -p-a-s2

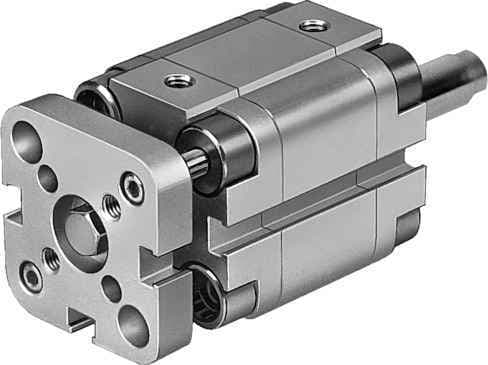

The Festo ADVUL-25-25-P-A-S2 compact cylinder features a 25 mm piston diameter, elastic silencer rings, and a guide rod with yoke. It operates with compressed air and is corrosion-resistant, making it suitable for various industrial applications.

Product Modeladvul-25- -p-a-s2

Key Features

1
High-Performance OperationThe Festo ADVUL-25-25-P-A-S2 compact cylinder is designed for high-performance operation, ensuring smooth and precise control in pneumatic applications. Its double-acting principle allows for both forward and backward motion, making it versatile for a wide range of tasks.
2
Compact DesignWith a compact design, this cylinder is ideal for space-constrained environments. Its small footprint makes it easy to integrate into existing systems without compromising performance.
3
Elastic Silencer RingsThe elastic silencer rings provide effective dampening, reducing noise and vibrations. This feature ensures a quieter and more stable operation, which is crucial in many industrial settings.
4
Corrosion ResistanceThe cylinder is made from corrosion-resistant materials, including high-alloyed stainless steel for the piston rod and aluminum wrought alloy for the cylinder tube. This ensures durability and longevity in harsh industrial environments.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

1mm 200mm

Piston diameter

25 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Structural design

Piston Piston rod

Position sensing

For proximity sensor

Versatile Mounting OptionsThe ADVUL-25-25-P-A-S2 offers versatile mounting options, including through-way bores and accessories. This flexibility allows for easy installation and integration into various pneumatic systems, making it a reliable choice for many applications.

Proximity Switch CompatibilityThe cylinder is designed to work seamlessly with proximity switches, enabling precise position detection. This feature enhances the overall accuracy and reliability of the system, making it suitable for applications requiring precise control.

Operating Pressure RangeThe ADVUL-25-25-P-A-S2 operates within a pressure range of 1 to 10 bar, providing flexibility in terms of system design and operation. This range ensures that the cylinder can be used in a variety of pneumatic systems, from low-pressure to high-pressure applications.

Ambient Temperature RangeThe cylinder can operate within an ambient temperature range of -20°C to 80°C, making it suitable for use in a wide range of industrial environments. This temperature range ensures that the cylinder performs consistently under various operating conditions.

Impact Energy at End PositionsThe ADVUL-25-25-P-A-S2 has an impact energy at the end positions of 0.10 J, which is significantly low. This indicates that the cylinder is designed to minimize shock and vibrations, ensuring smooth operation and reducing wear and tear on the system.

Theoretical Forces at 6 BarThe theoretical force at 6 bar for advancing and retracting is 295 N and 247 N respectively. These forces are calculated based on the cylinder's design and materials, ensuring that it can handle the required loads in various applications.

1Fastening Type and Pneumatic ConnectionThe cylinder is equipped with M5 pneumatic connections and can be fastened using through-way bores or accessories. This versatility in fastening options makes it easy to integrate into existing systems or design new ones.

1Material SpecificationsThe cylinder tube is made from aluminum wrought alloy, while the piston rod is made from high-alloyed stainless steel. The dynamic seals are made from NBR and TPE-U(PU), ensuring durability and resistance to wear and tear.

1Weight and DimensionsThe ADVUL-25-25-P-A-S2 weighs approximately 310 grams per piece and has a stroke length of 25 mm. These dimensions make it compact and lightweight, ideal for space-constrained applications.

1Manufacturer InformationThe ADVUL-25-25-P-A-S2 is manufactured by Festo, a renowned brand in the field of pneumatic and automation solutions. Festo's commitment to quality and innovation ensures that this product meets the highest standards of performance and reliability.
