qs-3/8-16

Name: qs-3/8-16
Brand: FESTO
SKU: qs-3/8-16

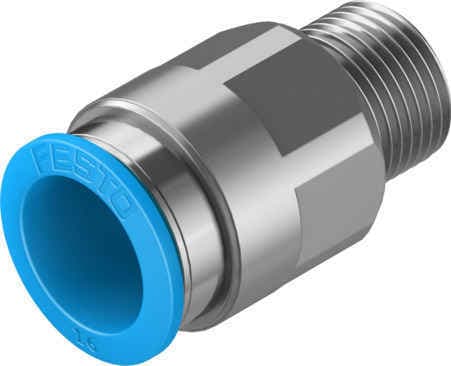

The Festo QS-3/8-16 push-in fitting provides a reliable pneumatic connection with its external hexagon mounting and straight design. It features an external thread R3/8 for secure connections.

Product Modelqs-3/8-16

Material Number164957

Product ID5455

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Secure ConnectionThe Festo QS-3/8-16 push-in fitting ensures a secure connection with its external hexagon mounting, providing stability and reliability in various industrial applications.
2
Efficient DesignThe straight design of the QS-3/8-16 makes it easy to install and maintain, reducing downtime and increasing productivity.
3
Easy InstallationThe push-in fitting design allows for quick and effortless installation, saving time and effort in setting up pneumatic systems.
4
Versatile UseThe external thread R3/8 makes it compatible with a wide range of pneumatic tubing sizes, making it versatile for various industrial applications.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

11mm

Type of seal on screwed plug

Coating

Mounting position

Any

Design

Straight design

Pack size

High-Quality MaterialsConstructed from high-quality materials, the Festo QS-3/8-16 push-in fitting ensures durability and long-lasting performance, reducing the need for frequent replacements.

Operating pressure for entire temperature range

-13.775psi 87psi

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-10°C 80°C

Nominal tightening torque

15.5Nm

Tolerance for nominal tightening torque

± 20%

Product weight

50g

Type of mounting

External hexagon, AF 22

Pneumatic connection 1

External thread R3/8

Pneumatic connection 2

for pneumatic tubing outside diameter 16 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

Brass, nickel-plated

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

164957
