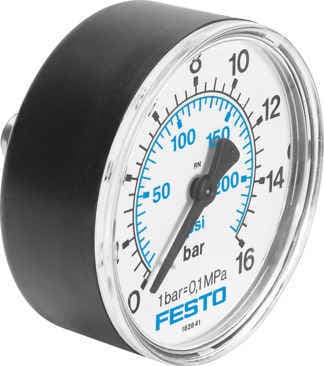

The Festo MA-50-16-1/4-EN pressure gauge provides accurate measurements from 0 to 16 bar, ensuring reliable operation in industrial settings. Conforms to EN 837-1 standards.
Product Modelma-50-16-1/4-en
Material Number162839
Product ID4985
Stock on Request
Last updated: 8/29/2026
Key Features
1
Accurate Measurement RangeThe Festo MA-50-16-1/4-EN pressure gauge offers a precise measurement range of 0 to 16 bar, ensuring that you get reliable and accurate readings in your industrial applications.
2
Compliance with International StandardsThis pressure gauge conforms to the EN 837-1 standard, ensuring that it meets international quality and safety standards.
3
Robust ConstructionDesigned with durability in mind, the MA-50-16-1/4-EN features a robust construction that can withstand the demands of industrial environments.
4
Easy to Read DisplayThe gauge provides a clear and easy-to-read display, making it simple to interpret the pressure readings without any confusion.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Display range
0psi 232psi
Symbol
00991463
Conforms to standard
EN 837-1
Pressure gauge nominal size
50
Explosion prevention and protection
Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Structural design
Bourdon tube pressure gauge
Explosion ProtectionThe MA-50-16-1/4-EN is designed with explosion protection in mind, ensuring safe operation in potentially hazardous environments.
Type of mounting
Line installation
Operating medium
Inert gas Neutral liquids
Information on operating and pilot media
No acetylene No oxygen
Operating pressure
0psi 232psi
Intermittent load factor
0.66
Measurement accuracy class
2.5
Degree of protection
IP43
Temperature of medium
-20°C 60°C
Ambient temperature
-20°C 60°C
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Note on materials
RoHS-compliant
Connection position
Centered on rear side
Pneumatic connection
G1/4
Materials in contact with the media
Brass
Material of screwed plug
Brass
Housing material
ABS
Inspection window material
PS
Housing colour
Black
Product weight
70g
Scale
Double scale bar (außen) psi (internal)
Manufacturer ID
162839
