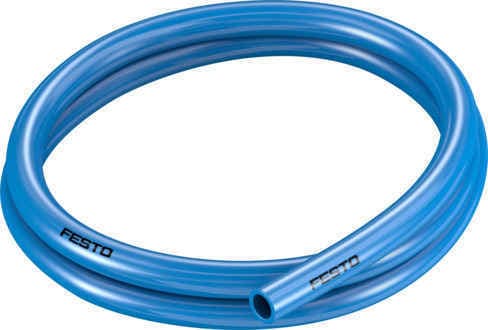

High-flow, durable plastic tubing for pneumatic systems. 16mm outside diameter, 11mm inside diameter, and a flow-relevant bending radius of 88mm.
Product Modelpun-16x2,5-bl
Material Number159672
Product ID4436
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Flow RatesThe PUN-16x2.5-BL features a flow-relevant bending radius of 88mm, ensuring optimal performance in pneumatic systems.
2
Durable ConstructionMade from high-quality plastic, this tubing is designed to withstand the demands of pneumatic applications.
3
Versatile ApplicationsSuitable for a wide range of pneumatic systems, including those requiring high flow rates and precise control.
4
Easy InstallationThe PUN-16x2.5-BL is designed with a minimum bending radius of 45mm, making it easy to install and maneuver in various settings.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Outside diameter
16mm
Bending radius relevant for flow rate
88mm
Inside diameter
11mm
Min. bending radius
45mm
Application note
TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.
Tubing characteristics
Suitable for energy chains
Reliable PerformanceWith its TPE-U Ester material, this tubing provides reliable performance and resistance to various environmental conditions, ensuring consistent operation over time.
Operating pressure for entire temperature range
-13.775psi 101.5psi
Temperature-dependent operating pressure
-13.775psi 145psi
Certification
German Technical Control Board (TüV)
Certificate issuing authority
B 013277 0506 00
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Material fire test
UL94 HB
LABS (PWIS) conformity
VDMA24364-B2-L
Ambient temperature
-35°C 60°C
Product weight by length
0.1294kg/m
Pneumatic connection
For plug connection outside diameter 16 mm
Color
Blue
Shore hardness
D 52 +/-3
Note on materials
RoHS-compliant
Material of pneumatic tubing
TPE-U(PU)
Manufacturer ID
159672
