Compact, single-acting pneumatic cylinder with 20mm stroke and 25mm piston diameter. Elastic cushioning and moderate corrosion resistance make it versatile for various applications.

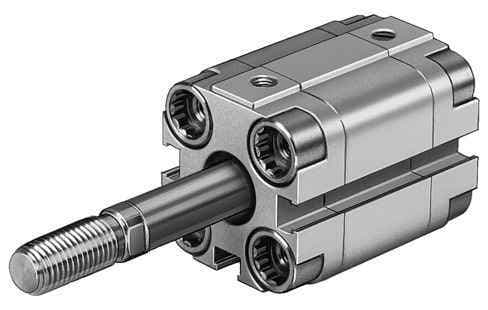

Product Modelaevuz-25-20-a-p-a
Material Number157270
Product ID4335
Stock on Request
Last updated: 8/29/2026
Key Features
1
Compact DesignThe Festo AEVUZ-25-20-A-P-A is designed to be compact, making it ideal for space-constrained applications.
2
Elastic CushioningEquipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth operation and reduces wear and tear.
3
Versatile MountingThe cylinder can be mounted in any position, providing flexibility in system design and installation.
4
High-Performance OperationWith a theoretical force of 221 N at 6 bar, this cylinder is suitable for demanding applications requiring high force output.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
20mm
Piston diameter
25 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Single-acting Pulling
Piston rod end
External thread
Corrosion Resistance
Classified as moderate corrosion stress (CRC 2), this cylinder is designed to withstand various industrial environments, ensuring reliable performance over time.
6
Operating Pressure RangeThe cylinder operates within 1 to 10 bar, making it adaptable to a wide range of pneumatic systems and pressures.
7
Position Sensing CapabilityCompatible with proximity sensors, this cylinder allows for precise position detection, enhancing the accuracy of your automation systems.
8
Material DurabilityConstructed from high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, ensuring durability and resistance to wear.
9
Operating MediumDesigned to operate with compressed air as per ISO 8573-1:2010 [7:4:4], this cylinder meets stringent standards for air quality and purity.
10
Temperature RangeOperating within -20°C to 80°C, this cylinder is suitable for a wide range of industrial environments, from cold storage to high-temperature applications.
11
1Impact Energy ControlWith an impact energy of 0.1 J at the end positions, this cylinder helps minimize shock loads and ensures smooth operation.
12
1Weight and PortabilityWeighing 260 grams, this compact cylinder is easy to handle and integrate into your system without adding significant weight or bulk.
13
1Pneumatic ConnectionEquipped with an M5 pneumatic connection, this cylinder is compatible with a wide range of pneumatic fittings and accessories.
14
1Oiled Operation OptionThe possibility of oiled operation (required for further use) ensures that the cylinder can be used in applications where lubrication is necessary for optimal performance.
15
1Compliance and CertificationConforms to LABS (PWIS) and VDMA24364-B1/B2-L standards, ensuring compliance with industry regulations and safety standards.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991204
Variants
Piston rod at one end
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
