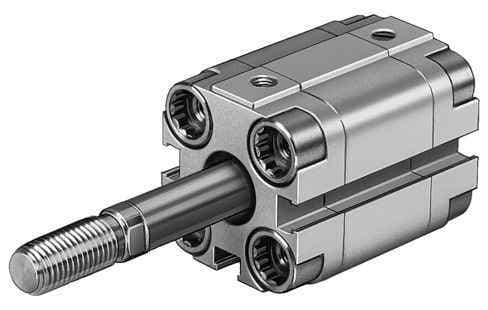

aevuz-20-25-a-p-a

Name: aevuz-20-25-a-p-a
Brand: FESTO
SKU: aevuz-20-25-a-p-a

Short Description: The Festo AEVUZ-20-25-A-P-A compact air cylinder offers a 25mm stroke, 20mm piston diameter, and operates at 0.1-1 MPa. It features high-alloy stainless steel piston rods and galvanized flange screws, ensuring durability and precision.

Product Modelaevuz-20-25-a-p-a

Material Number157266

Product ID4331

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High-Performance OperationThe AEVUZ-20-25-A-P-A operates efficiently at pressures ranging from 0.1 to 1 MPa, making it suitable for a variety of industrial applications.
2
Durable ConstructionEquipped with high-alloy stainless steel piston rods and galvanized flange screws, this cylinder provides exceptional durability and resistance to corrosion.
3
Compact DesignWith a stroke of 25mm and a piston diameter of 20mm, this compact air cylinder is ideal for space-constrained environments.
4
Precise ControlThe elastic cushioning rings/pads at both ends ensure smooth operation and precise control, reducing wear and tear on the cylinder.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

25mm

Piston diameter

20 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Single-acting Pulling

Piston rod end

External thread

Versatile Mounting OptionsThe cylinder can be mounted in any position, offering flexibility in application setup and integration into existing systems.

Feature### Additional Information

- Operating Temperature-20°C to 80°C

Position sensing

For proximity sensor

Symbol

00991204

Variants

Piston rod at one end

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.14J

Theoretical force at 6 bar, advancing

123N

Moving mass at 0 mm stroke

20g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

149g

Additional weight per 10 mm stroke

23g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

157266
