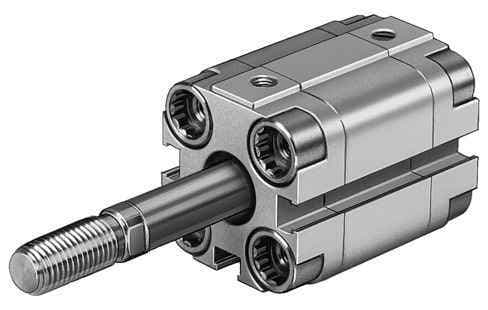

aevuz-20-10-a-p-a

Name: aevuz-20-10-a-p-a
Brand: FESTO
SKU: aevuz-20-10-a-p-a

Compact cylinder for proximity sensing with 10 mm stroke, 20 mm piston diameter, flexible cushioning, and male thread piston-rod end. Suitable for single-acting pulling action in compressed air.

Product Modelaevuz-20-10-a-p-a

Material Number157263

Product ID4328

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Compact DesignThe AEVUZ-20-10-A-P-A is designed to be compact, making it ideal for applications where space is limited. Its small size allows for easy integration into various systems.
2
Proximity Sensing CapabilityThis cylinder is specifically designed for proximity sensing applications, ensuring accurate detection and precise control in your system.
3
Flexible CushioningEquipped with flexible cushioning rings at both ends, the AEVUZ-20-10-A-P-A provides smooth operation and reduces wear and tear on the cylinder.
4
Versatile Assembly PositionThe cylinder can be assembled in any position, offering flexibility in system design and installation. This feature makes it suitable for a wide range of applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

10mm

Piston diameter

20 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Single-acting Pulling

Piston rod end

External thread

Single-Acting Pulling ActionThe AEVUZ-20-10-A-P-A operates on a single-acting pulling action, which simplifies the control mechanism and reduces complexity in your system. It is perfect for applications requiring straightforward operation.

Compressed Air OperationDesigned to operate within the 1 to 10 bar pressure range, this cylinder is compatible with compressed air in accordance with ISO 8573-1:2010 [7:4:4], ensuring reliable performance in various industrial environments.

Corrosion ResistanceClassified as having moderate corrosion stress (CRC 2), the AEVUZ-20-10-A-P-A is suitable for use in environments where some corrosion is expected, making it durable and long-lasting.

Material QualityConstructed from high-quality materials such as high-alloyed stainless steel for the piston rod and aluminium wrought alloy for the cylinder tube, this cylinder ensures robust performance and longevity.

Easy MaintenanceThe oiled operation possible (required in further operations) feature ensures that the cylinder remains well-lubricated, reducing the need for frequent maintenance and extending its lifespan.

Wide Operating Temperature RangeThe AEVUZ-20-10-A-P-A operates effectively within an ambient temperature range of -20°C to 80°C, making it suitable for a variety of industrial settings.

Position sensing

For proximity sensor

Symbol

00991204

Variants

Piston rod at one end

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.14J

Theoretical force at 6 bar, advancing

123N

Moving mass at 0 mm stroke

20g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

149g

Additional weight per 10 mm stroke

23g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

157263
