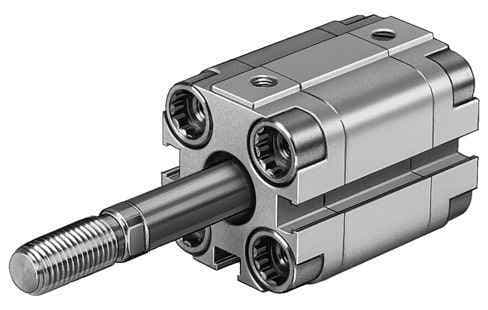

Compact DesignThe Festo AEVUZ-16-25-A-P-A is designed to be compact, requiring 50% less space than comparable standard cylinders. This makes it perfect for applications where space is limited.
2
Elastic CushioningEquipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth and controlled movement, reducing wear and tear on the piston and rod.
3
Single-Acting OperationThe AEVUZ-16-25-A-P-A operates as a single-acting cylinder, designed for pushing applications. This makes it suitable for various industrial tasks that require a straightforward, one-way motion.
4
Optional Mounting PositionThe cylinder offers an optional mounting position, allowing for flexibility in installation. This feature enhances its versatility and makes it easier to integrate into different systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
25mm
Piston diameter
16 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Single-acting Pulling
Piston rod end
External thread
5
Built-in Magnet (Optional)Some versions of the AEVUZ-16-25-A-P-A come with a built-in magnet, which can be used for position detection or other specific applications. This feature adds an extra layer of functionality to the cylinder.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991204
Variants
Piston rod at one end
Operating pressure
18.85psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
